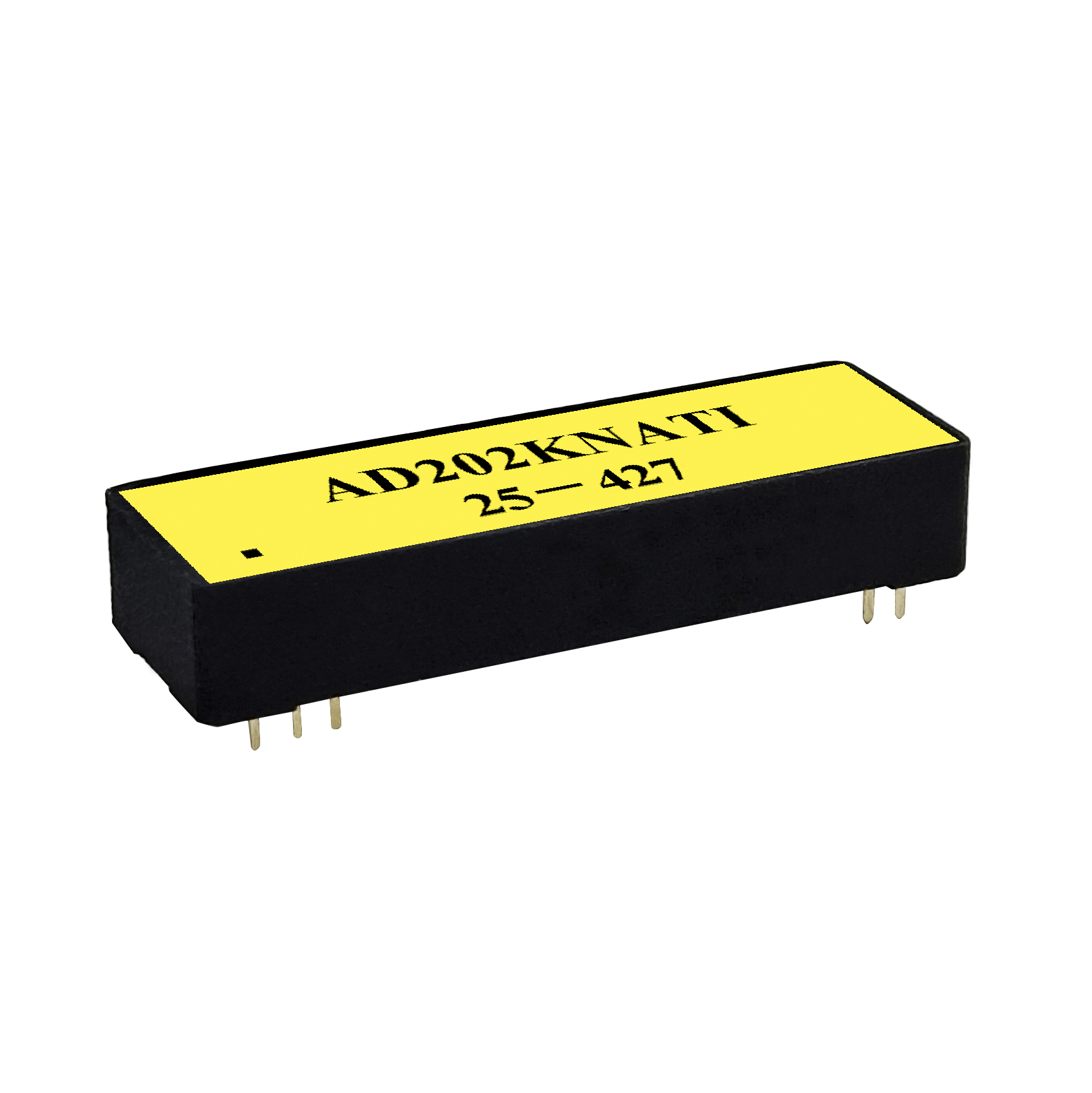

The AD202ATI is a high-performance isolation amplifier featuring dual input ports (IN+ and IN−) with an FB output port, functionally equivalent to an operational amplifier. Its output signal gain can be configured via an external feedback circuit. The device integrates an isolated DC-DC converter providing ±7.5V outputs, eliminating the need for external power modules and saving PCB space, with a compact final package size of just 2.1×0.7×0.45 inches.
With outstanding isolation performance—input/output impedance ≥2GΩ and Isolation-Mode Rejection Ratio (IMRR) ≥130dB at 50/60Hz (Gain=100V/V)—the AD202ATI is compatible with various industrial sensors, making it ideal for monitoring and remote data acquisition systems.
For more information about the AD202ATI high-isolation voltage amplifier or similar products, please feel free to contact us.
