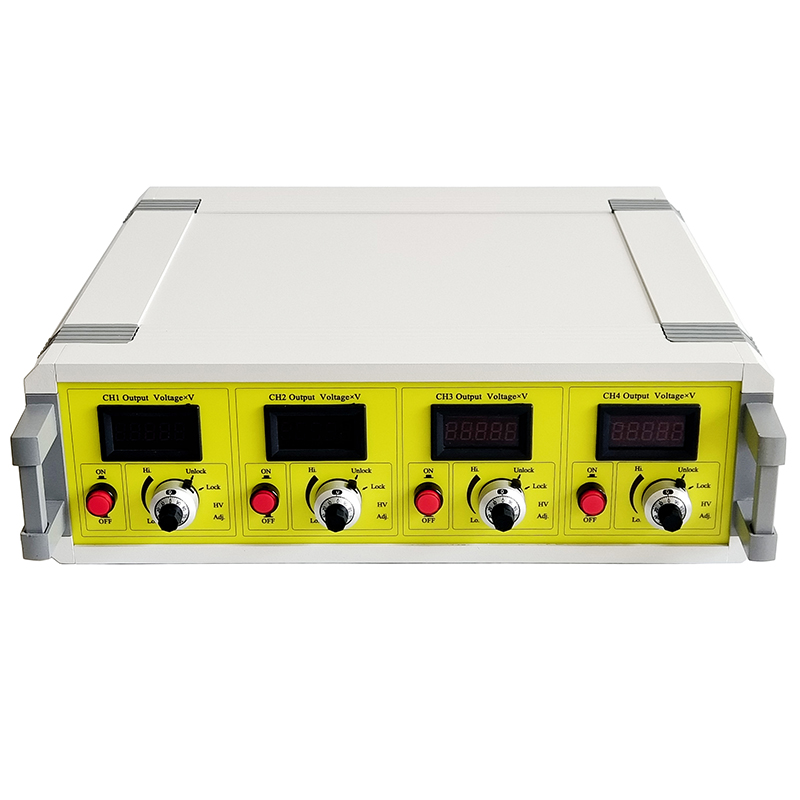

AC-DC High Voltage Power Supply AHVACPN5KV1MABT4
FEATURES
APPLICATIONS
| Part Number | STOCK | 1-9PCs | 10-49PCs | 50-99 PCs | 100-99999 PCs | Buy Now | Datasheet | Add TO WATCHLIST |
|---|---|---|---|---|---|---|---|---|
| AHVACPN5KV1MABT4 | 0 | $1899 | $1799 | $1699 | $1599 |   |  |
To operate the high voltage power supply, first connect the AC 90~230V input, and then turn on the power. Ensure the potentiometer is set to "0" before opening
the high voltage switch. Next, adjust the potentiometer in a clockwise direction while observing the digital display value. The output voltage = the display value.
When the required voltage is reached, rotate the potentiometer lock in a clockwise direction to lock the potentiometer. This will prevent accidental adjustments
to the potentiometer, which could alter the output voltage. High voltage connection wire is used for high voltage output.
