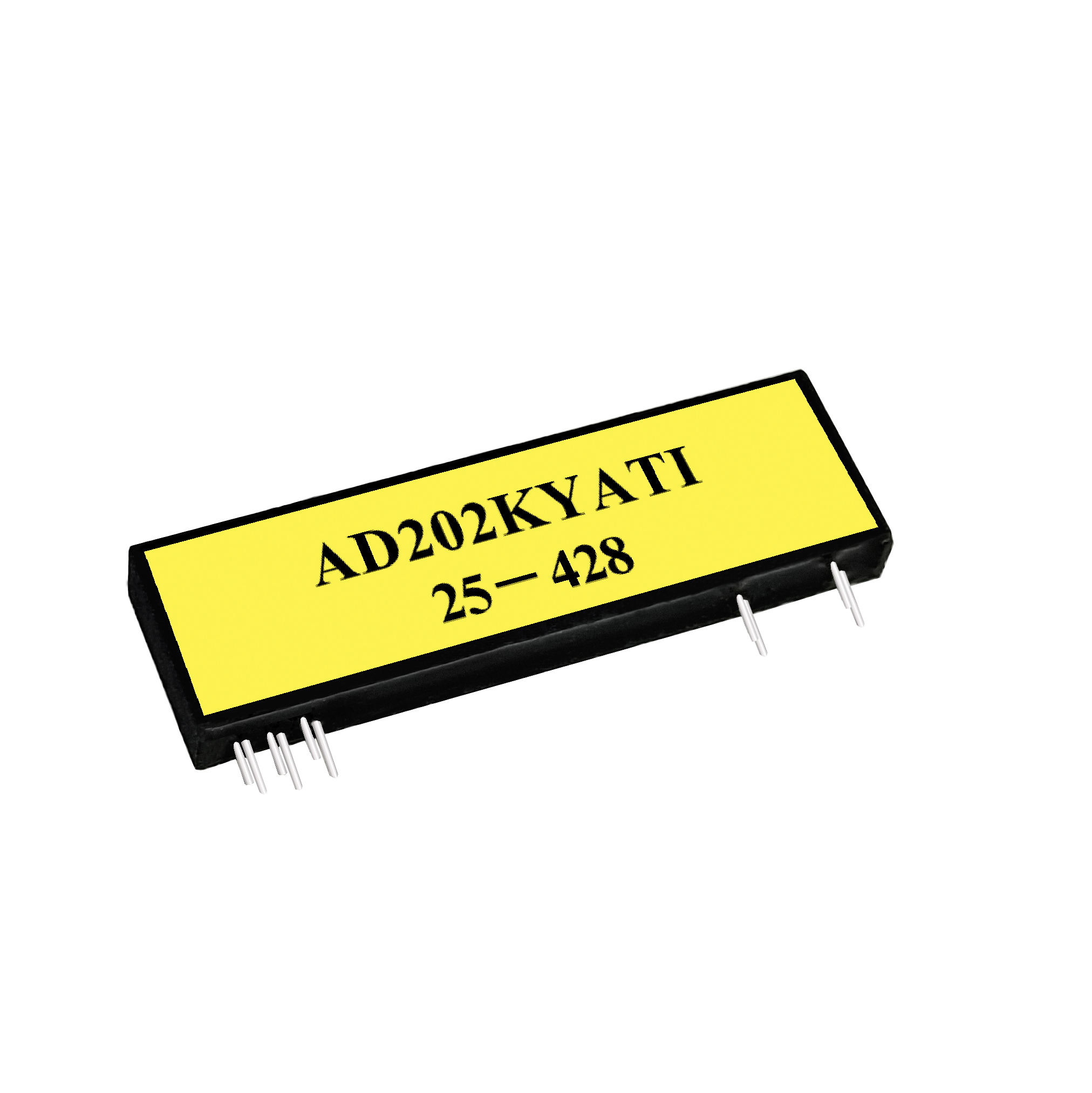

AD202KYATI: High-Performance, Two-Port Isolation Amplifier
The AD202KYATI is a precision two-port isolation amplifier designed for accurate signal conditioning in demanding industrial and medical applications. It provides outstanding voltage isolation, high accuracy, and robust performance, making it a reliable and cost-effective solution for protecting sensitive measurement systems.
Key Product Attributes
- Model: AD202KYATI
- Type: Two-Port Isolation Amplifier
- Isolation Voltage: 1500 Vrms (Continuous)
- Gain: Factory-Preset (e.g., 1V/V, 10V/V)
- Nonlinearity: < ±0.025% (Typical)
- Bandwidth: 5 kHz
- Supply Voltage: +15 V
Key Features & Advantages
- High Voltage Isolation & SafetyAdvantage: Withstands 1500 Vrms continuous, protecting equipment and operators from high common-mode voltages, transients, and ground loops. This ensures system safety and data integrity.
- High Accuracy & LinearityAdvantage: Exceptionally low nonlinearity ensures precise signal measurement with minimal error, which is critical for sensitive instrumentation and control systems.
- Wide BandwidthAdvantage: A 5 kHz bandwidth allows for the accurate amplification of dynamic signals, suitable for AC monitoring and fast-changing process variables.
- Robust & Compact DesignAdvantage: The durable, silicone-filled metal package offers excellent protection against harsh environmental conditions, ensuring long-term reliability in industrial settings.
- Easy System IntegrationAdvantage: Requires only a single +15V power supply, simplifying design, reducing component count, and lowering overall implementation costs.
Primary Applications
The AD202KYATI is ideal for applications demanding signal integrity and safety:
- Industrial Process Control (PLC I/O, Motor Drives)
- Medical Instrumentation (Patient Monitoring)
- Test & Measurement Equipment
- Data Acquisition Systems
- Power Supply and Motor Control Monitoring
