High Voltage Power Supply | I/O Proportional High Voltage Power Supply Selection Guide AHVR12V600V16MAP

I/O Proportional High Voltage Power Supply Selection Guide AHVR12V600V16MAP

Availability: In Stock

FEATURES

●Output Voltage Proportional to Input Voltage ●Output Voltage from 0 to 600V ●Input Voltage from 0.7V to 12V ●Low Power Consumption ●Low Turn-on Voltage 0.7VDC ●Input to Output Isolation ●Small Output Ripple, Time Drift, and Temperature Drift ●Overload and Short Circuit Protection ●Metal Enclosure for Zero EMIS ●Easy Control and Installation

APPLICATIONS

⚫X-ray Machine,⚫ Spectral Analysis, ⚫ Nondestructive Inspection , ⚫Semiconductor Manufacturing Equipment, ⚫Capillary Electrophoresis, ⚫Physical Vapor Phase Deposition, ⚫ Electrospinning Preparation of Nanofiber,⚫DC Reactive Magnetron Sputtering,

Ordering Info.
Description
Help us improve webpage

Part Number	STOCK	1-9PCs	10-49PCs	50-99 PCs	100-99999 PCs	Buy Now	Datasheet	Add TO WATCHLIST
AHVR12V600V16MAP	0	$125	$115	$105	$95

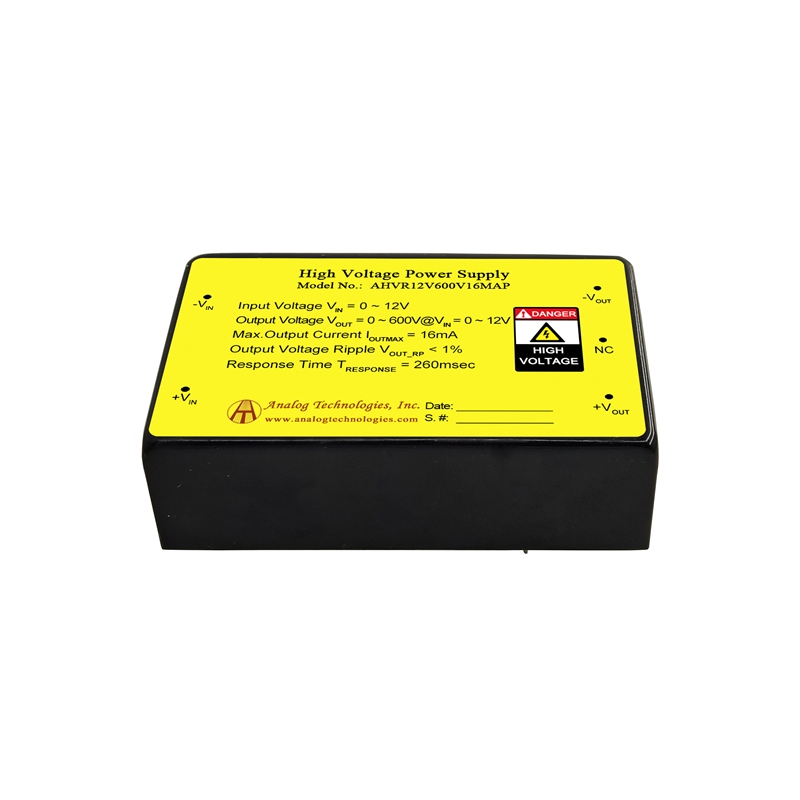

AHVR12V600V16MAP comes with a quasi-sine wave oscillator, a fully enclosed transformer, an input and output filter, and a five-sided metal enclosure. These
modules present low EMI/RFI, low noise, and low ripple. The input and output are galvanically isolated. Proportional to the input voltage, the output voltage has a typical turn-on voltage as low as 0.7V. It also comes with output short-circuit protection and a wide range of output voltage adjustments. This high voltage
power supply also features ultra-small size, light weight, moisture proof, shockproof, metal enclosure, and zero EMIs.
