I/O Proportional High Voltage Power Supply Selection Guide AHVR15V4KV2R5MAP

Availability: In Stock

FEATURES

●Output Voltage Proportional to Input Voltage  ●Output Voltage from 0 to 4000V  ●Input Voltage from 0V to 15V  ●Low Power Consumption  ●Low Turn-on Voltage 0.7VDC  ●Input to Output Isolation  ●Small Output Ripple, Time Drift, and Temperature Drift  ●Overload and Short Circuit Protection  ●Metal Enclosure for Zero EMIS  ●Easy Control and Installation

APPLICATIONS

⚫X-ray Machine⚫ Spectral Analysis ⚫ Nondestructive Inspection ⚫Semiconductor Manufacturing Equipment, ⚫Capillary Electrophoresis, ⚫Physical Vapor Phase Deposition ⚫ Electrospinning Preparation of Nanofiber⚫DC Reactive Magnetron Sputtering
Part Number STOCK 1-9PCs 10-49PCs 50-99 PCs 100-99999 PCs Buy Now Datasheet Add TO WATCHLIST
AHVR15V4KV2R5MAP 0 $149 $139 $129 $119

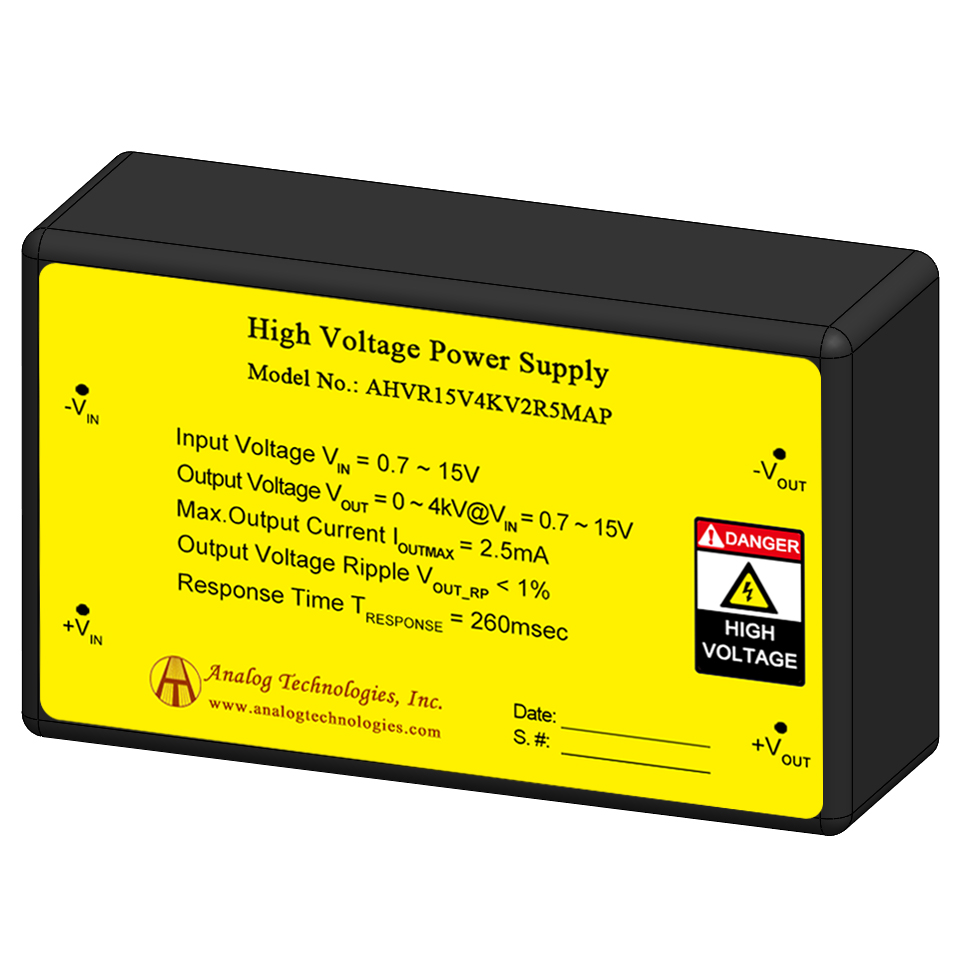

AHVR15V4KV2R5MAP comes with a quasi-sine wave  oscillator, a fully enclosed transformer, an input and  output filter, and a five-sided metal enclosure. These  modules present low EMI/RFI, low noise, and low ripple.  The input and output are galvanically isolated.  Proportional to the input voltage, the output voltage  has a typical turn-on voltage as low as 0.7V. It also  comes with output short-circuit protection and a wide  range of output voltage adjustments. This high voltage  power supply also features ultra-small size, light weight,  moisture proof, shockproof, metal enclosure, and zero  EMIs.
