High Voltage Low Noise Laser Controller ATLS200MA116D

Availability: In Stock

FEATURES

●Wide input voltage range: 6.5V~16V ●Wide output voltage range: 1.5V~V_VPS‒2V ●Ultra low noise: 300nA_P-P @0.1Hz to 10Hz ●Maximum output current without heat sink: 100mA ●High absolute accuracy: ± 0.1% ●High stability: <15ppm/°C ●Programmable current limit ●Complete shielding

APPLICATIONS

Driving laser diodes with low noise, including DPSSL, EDFA, SOA, fiber laser, direct diode lasers, etc.

Ordering Info.
Description
Help us improve webpage

Part Number	STOCK	1-9PCs	10-49PCs	50-199 PCs	200-499 PCs	≥500 PCs	Buy Now	Datasheet	Add TO WATCHLIST
ATLS200MA116D	2	$89	$86	$82	$79	$74

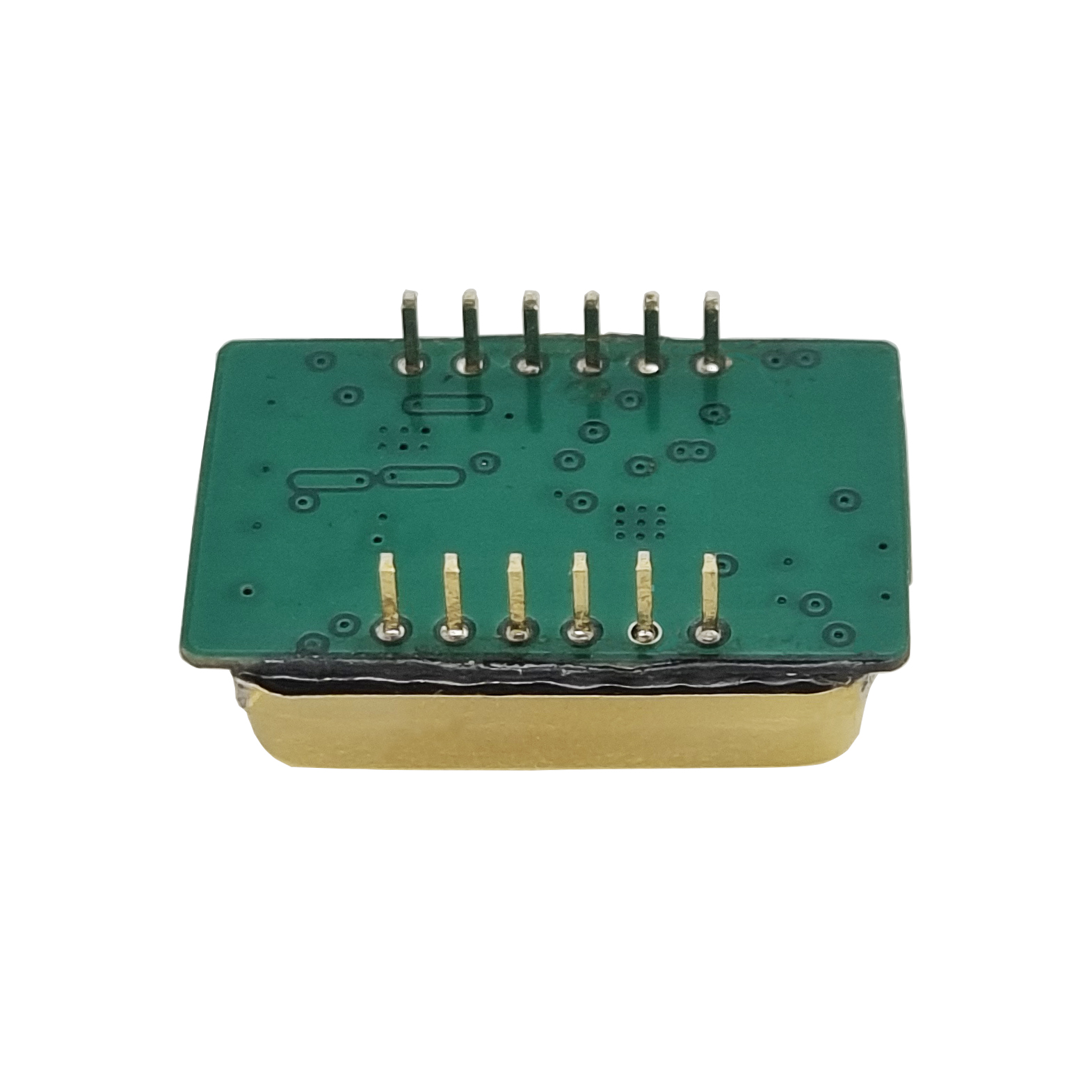

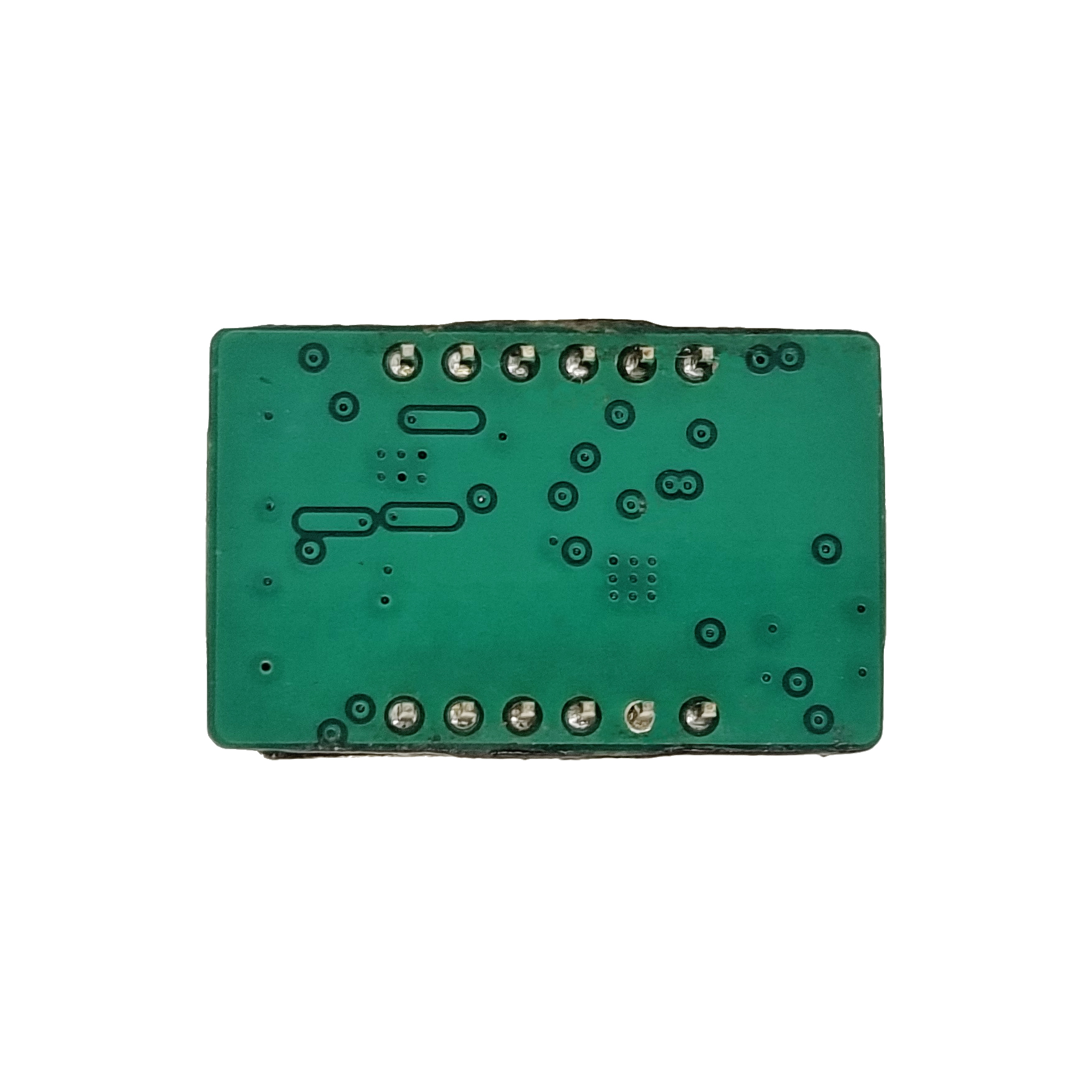

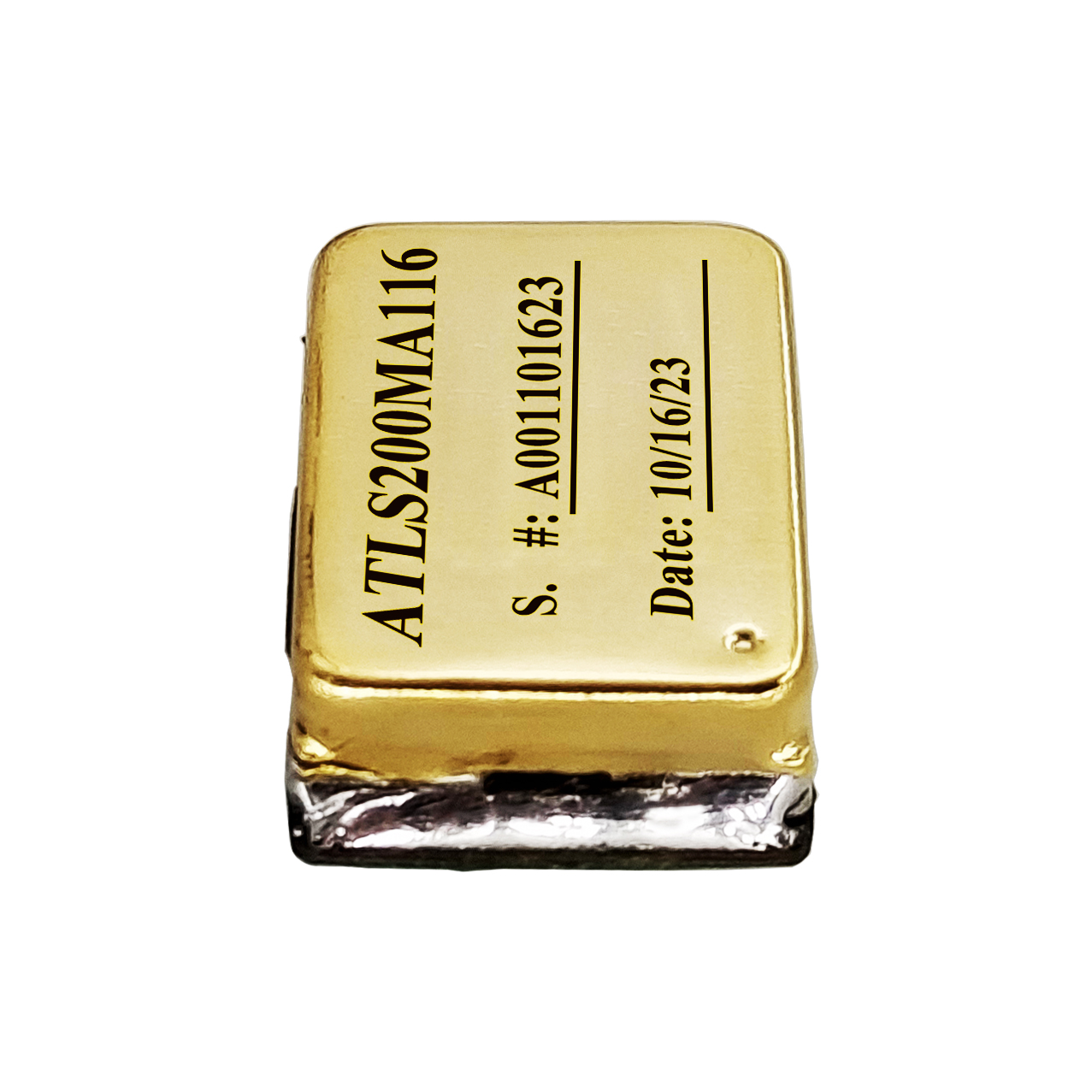

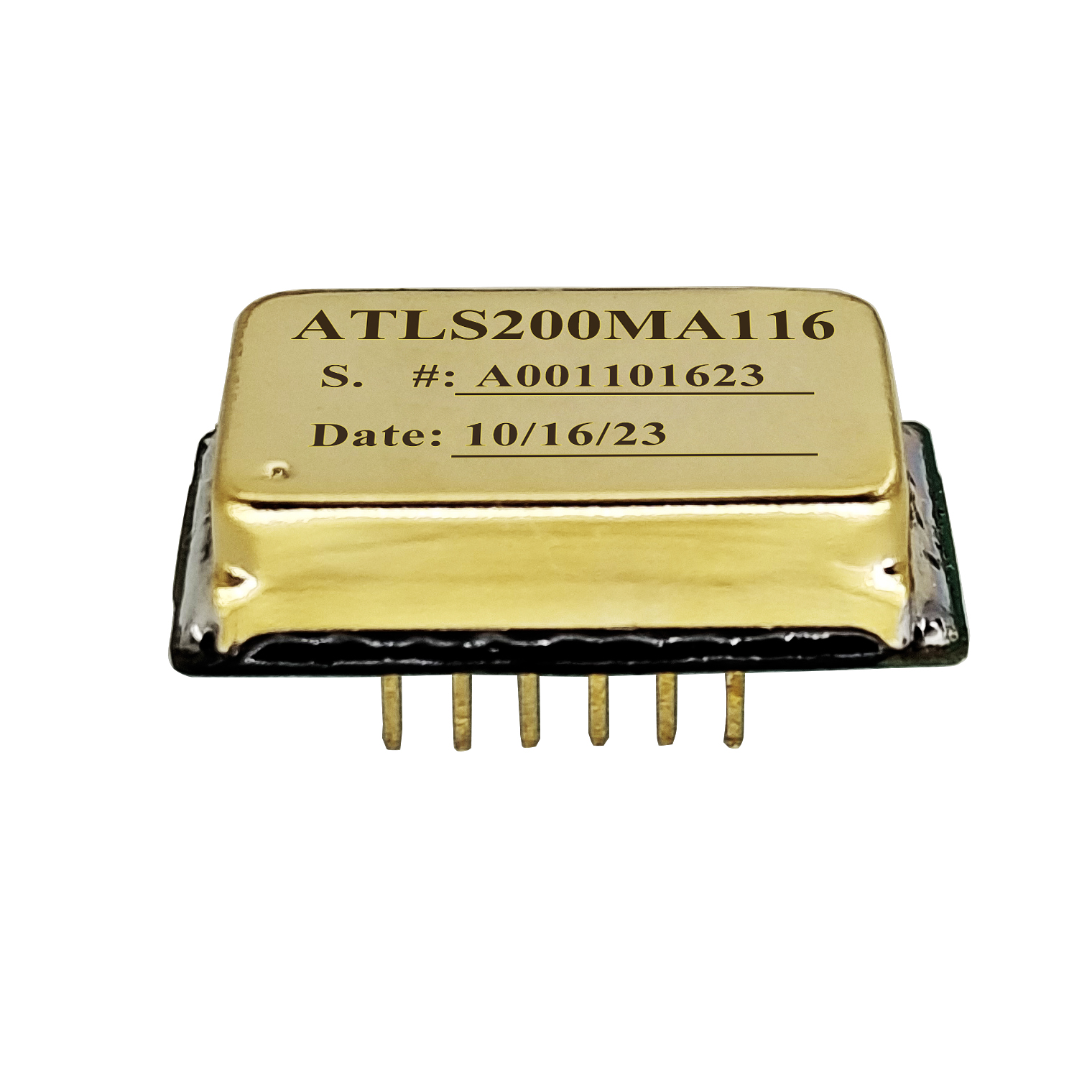

The ATLS200MA116D is an electronic module designed for driving diode lasers with up to 200mA low noise current. The output voltage is 1.5V to 14V when powered by a 16V power supply. When the maximum power consumed by the controller is maintained to <1W, it does not require a heat sink to operate.

The controller has a temperature compensation network so that the output current remains the same even as the controller temperature rises.
