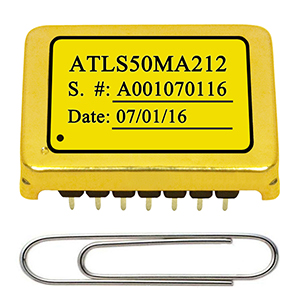

Constant Current Laser Drivers/Controllers ATLS50MA212

Availability: In Stock

FEATURES

●Power Supply Voltage VPS Range: 4.5V ~ 15V ●Full Swing Output Voltage: 0.2VVPS to 0.8VVPS ●Maximum Output Current: 50mA ●Wide Modulation Bandwidth: DC ~ 10kHZ ●Dual Independent Current Set Ports  ●Direct Digital Modulation Control  ●3 Control States: Shutdown, Standby and Operation  ●Very Low Output Current Noise: < 15µA@0.1Hz ~ 10Hz ●High Current Stability: < ±300µA@1A & −20°C ~ 80°C ●Low Output Ripple Voltage: < 4mV@50kHZ

APPLICATIONS

ATLS50MA212D can be used to drive one or multiple laser diodes for DPSSL, EDFA, and fiber lasers with low noise and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-199 PCs 200-499 PCs ≥500 PCs Buy Now Datasheet Eval. BoardAvail. Eval. BoardAvail.(Price) Add TO WATCHLIST
ATLS50MA212 2 $79 $76 $72 $69 $64 ATLS212EV1.0 $25

This laser driver, ATLS50MA212, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVp-p ripple voltage at 50kHZ), wide modulation bandwidth, and small size. The wide output voltage range, 0.8V to 0.9VVPS, allows driving one or multiple serial laser diodes at the same time, for up to 50mA well controlled current at high efficiency. The extremely low noise between DC ~ 10kHZ and low DC current drift make it ideal for driving diode pumped single mode laser diodes to achieve mode-hop-free and narrow optical wavelength drift, thus, long coherent length.
