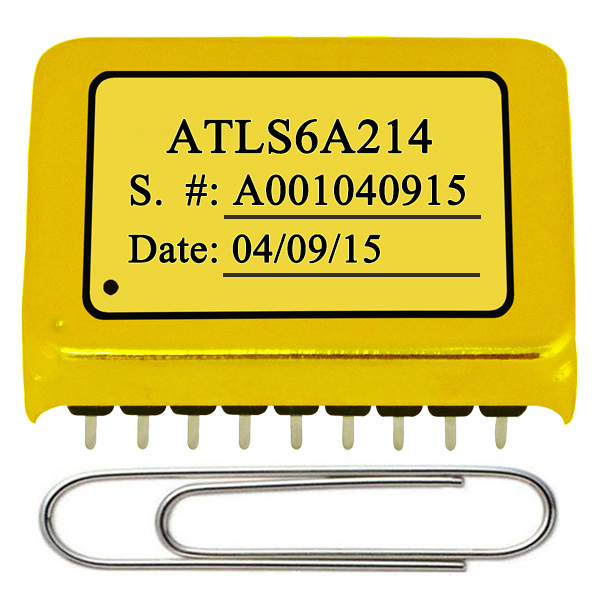

High Voltage Constant Current 6A Laser Driver ATLS6A214

Availability: In Stock

FEATURES

●Power Supply Voltage VPS Range: 5V ~ 14V ●Full Swing Output Voltage: 0.2VVPS to 0.8VVPS ●Maximum Output Current: 6A ●High Efficiency: 92% - no heat sink is needed (IOUT=6A@VLDA=10V&VVPS=15V) ●Wide Modulation Bandwidth: DC~10kHz ●Dual Independent Current Set Ports: LISH and LISL ●Direct Digital Modulation Control: PCN ●3 Control States: Shutdown, Standby and Operation  ●Very Low Output Current Noise: 8.02μA@0.1Hz~10Hz ●High Current Stability: < ±600μA@6A &-20°C~80°C ●Low Output Ripple Voltage: < 4mV@500kHz ●Fully Shielded  ●Both DIP and SMT Packages Available  ●Compact Size: 27.4×21×5.7 (mm)

APPLICATIONS

Drive one or multiple laser diodes for DPSSL, EDFA, andfiber lasers with low noise and high efficiency.
Part Number STOCK 1-9PCs 10-49PCs 50-199 PCs 200-499 PCs ≥500 PCs Buy Now Datasheet Eval. BoardAvail. Eval. BoardAvail.(Price) Add TO WATCHLIST
ATLS6A214D 4 $79 $76 $72 $69 $64 ATLS214EV1.0 $25

This laser driver, ATLS6A214, is an electronic module that has all the valuable and important, but often difficult to achieve simultaneously, features simultaneously: wide input and output voltage range, high output current capability, high efficiency, low output noise (but it has an output 4mVpp ripple voltage at 500kHz), wide modulation bandwidth,and small size.
