Low Cost Inertial Measurement TS-2312-R03-485

Availability: In Stock

FEATURES

●Single Axis Inclination Measurement  ●Resolution: 0.02° ●ower Supply: 9 - 36V ●Size: 2.165 ×1.46 ×0.95 (inch) 55 ×37 ×24 (mm) ●Highest Accuracy: 0.2° ●Output: Output: RS232/RS485/TTL Optional Modbus ●IP67 Protection Level

APPLICATIONS

⚫ Industrial Automatic Leveling ⚫ Medical Instruments ⚫ Photovoltaic Automatic Tracking ⚫ Tower Tilt Monitoring ⚫ Special Valve ⚫ Oil Drilling Equipment ⚫ Industrial Converter ⚫ Lifting Equipment Inclination Control
Part Number STOCK Price Buy Now Datasheet Add TO WATCHLIST
TS-2312-R03-485 10 $169.2

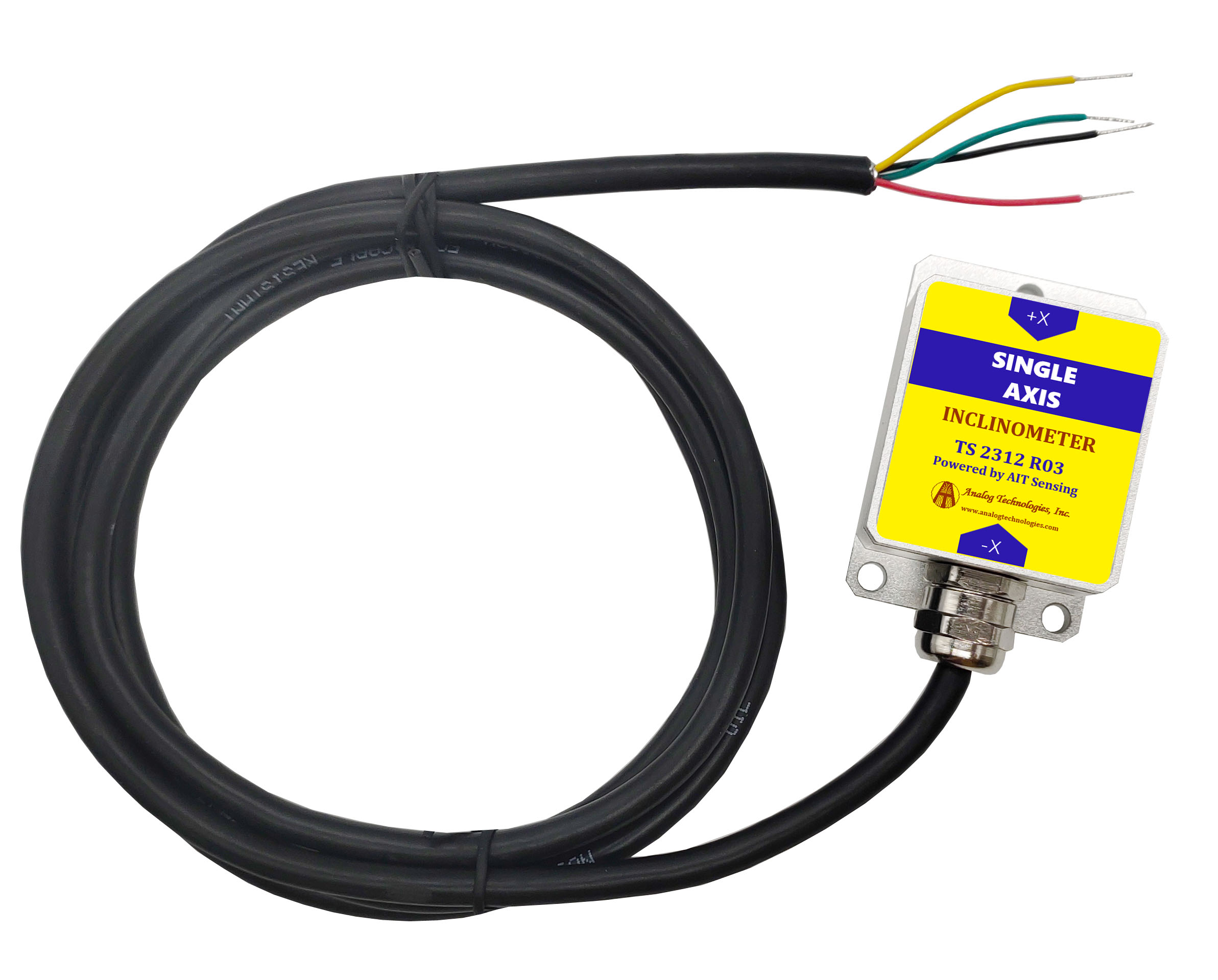

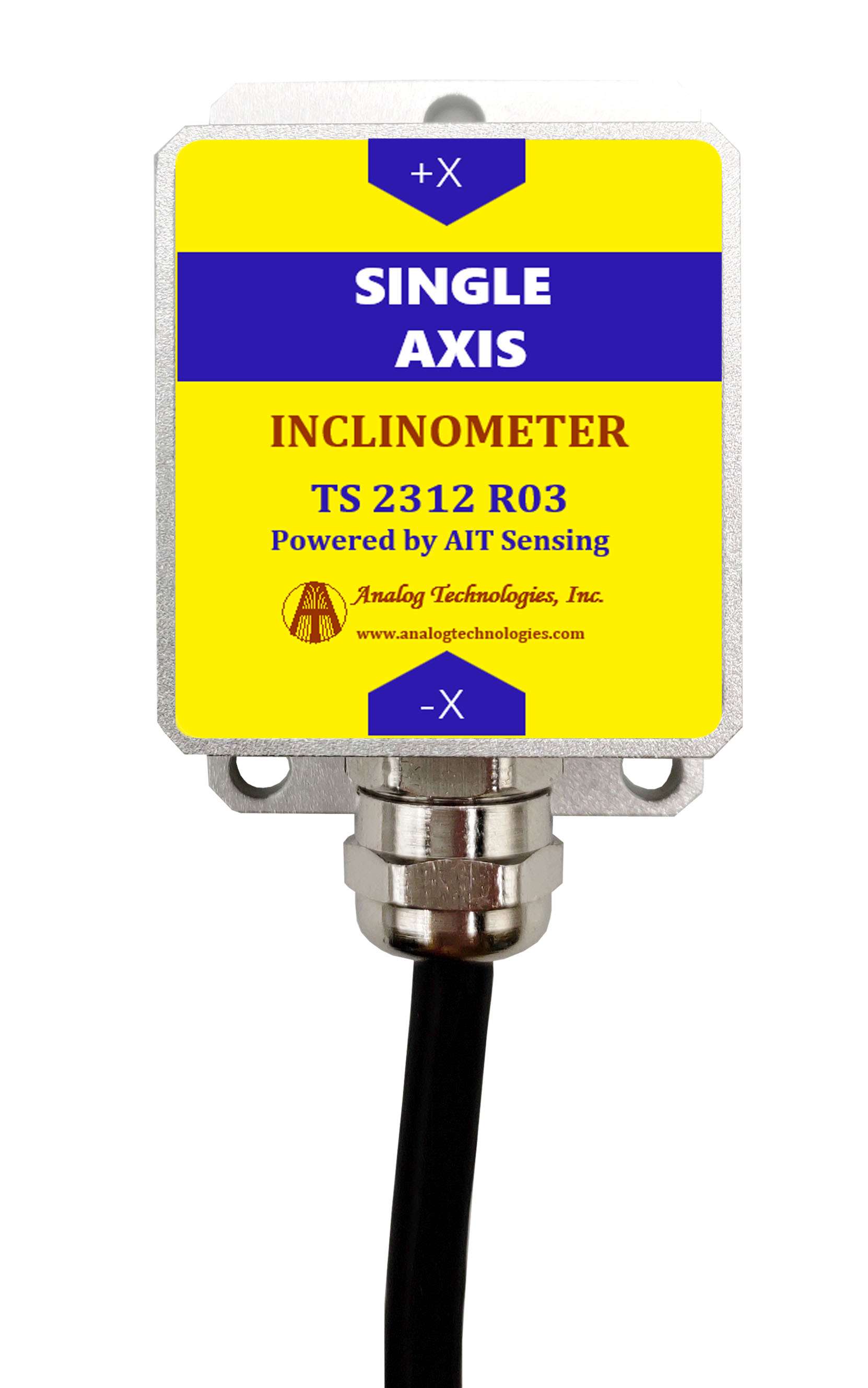

The TS-2312-R03, developed and manufactured by AIT Sensing, is a cost - effective single - axis inclinometer. It offers RS232/RS485/TTL Optional Modbus output. It incorporates a well - established industrial - grade MEMS accelerometer, with a measurement range of ±180° and a maximum accuracy of 0.2°. The operating temperature range extends from −40°C to + 85°C.
