Low Cost Inertial Measurement Sensors - Analog Technologies, Inc.

Low Cost Inertial Measurement TS-3420-R02-485

Availability: In Stock

FEATURES

●Dual Axis Inclination Measurement ●Resolution: 0.01° ●Power Supply: 9 - 36V ●Size: 2.165 ×1.46 ×0.94 (inch) 55 ×37 ×24 (mm) ●Highest Accuracy: 0.1° ●Output: RS232/RS485/TTL for optional ●IP67 Protection Level ●Measurement Range: ±90°

APPLICATIONS

⚫ Industrial Automatic Leveling ⚫ Medical Instruments ⚫ Photovoltaic Automatic Tracking ⚫ Tower Tilt Monitoring ⚫ Special Valve ⚫ Oil Drilling Equipment ⚫ Industrial Converter ⚫ Lifting Equipment Inclination Control

Ordering Info.
Description
Help us improve webpage

Part Number	STOCK	Price	Buy Now	Datasheet	Add TO WATCHLIST
TS-3420-R02-485	10	$254.2

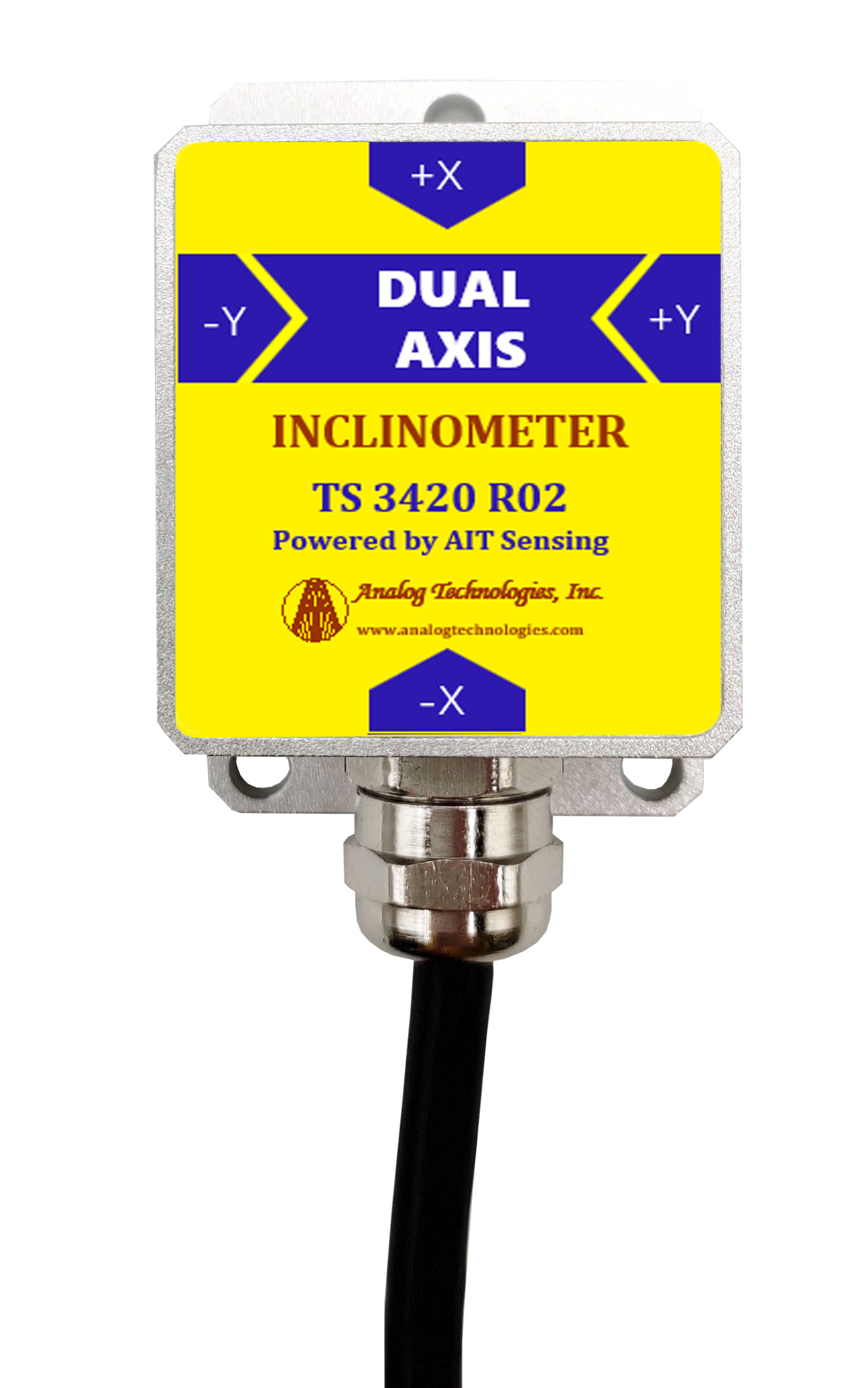

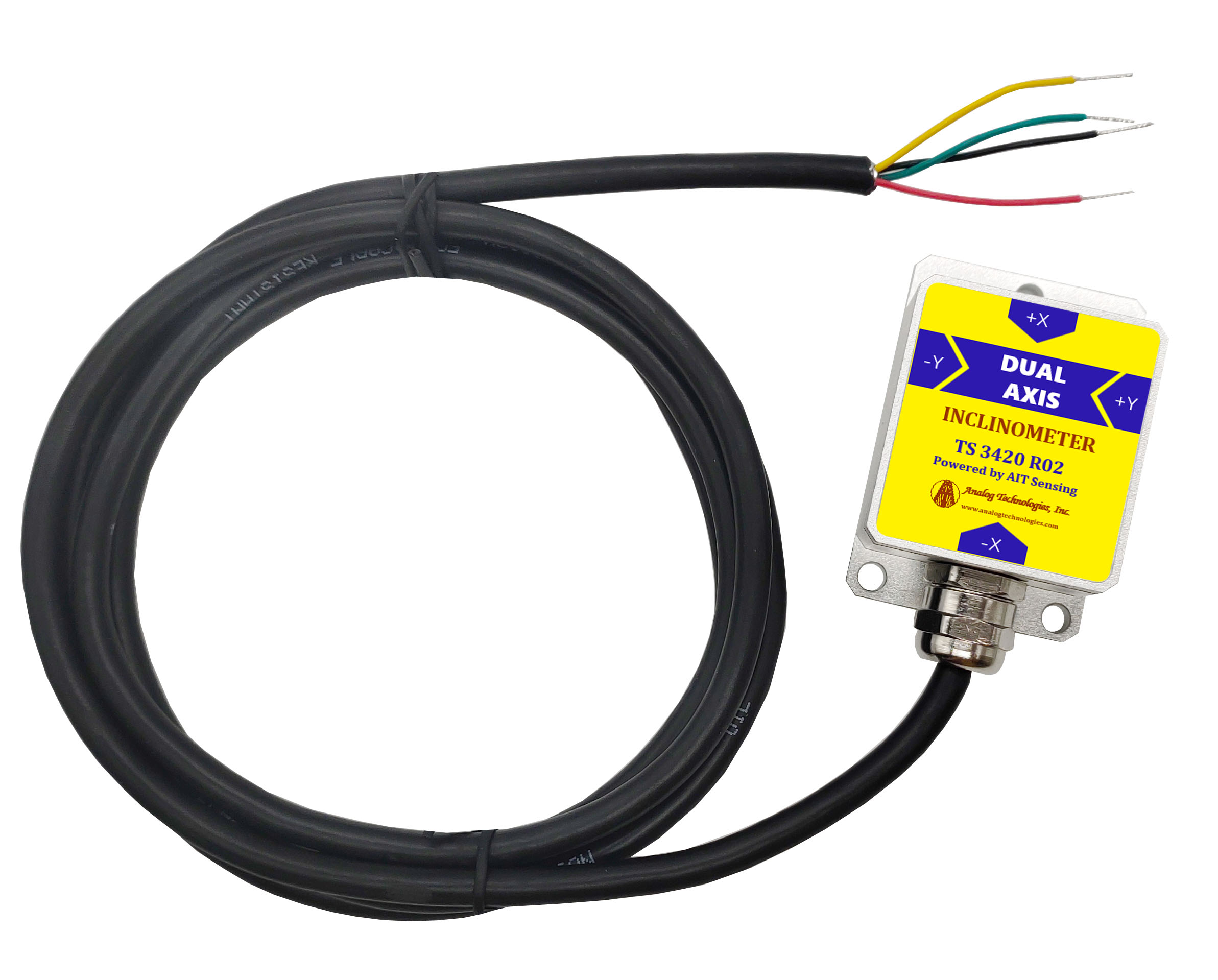

The TS-3420-R02, developed and manufactured by AIT Sensing, is a cost - effective dual - axis inclinometer. It incorporates a well - established industrial - grade MEMS accelerometer, with a measurement range of ±90° and a maximum accuracy of 0.1°. The operating temperature range extends from −40°C to + 85°C
