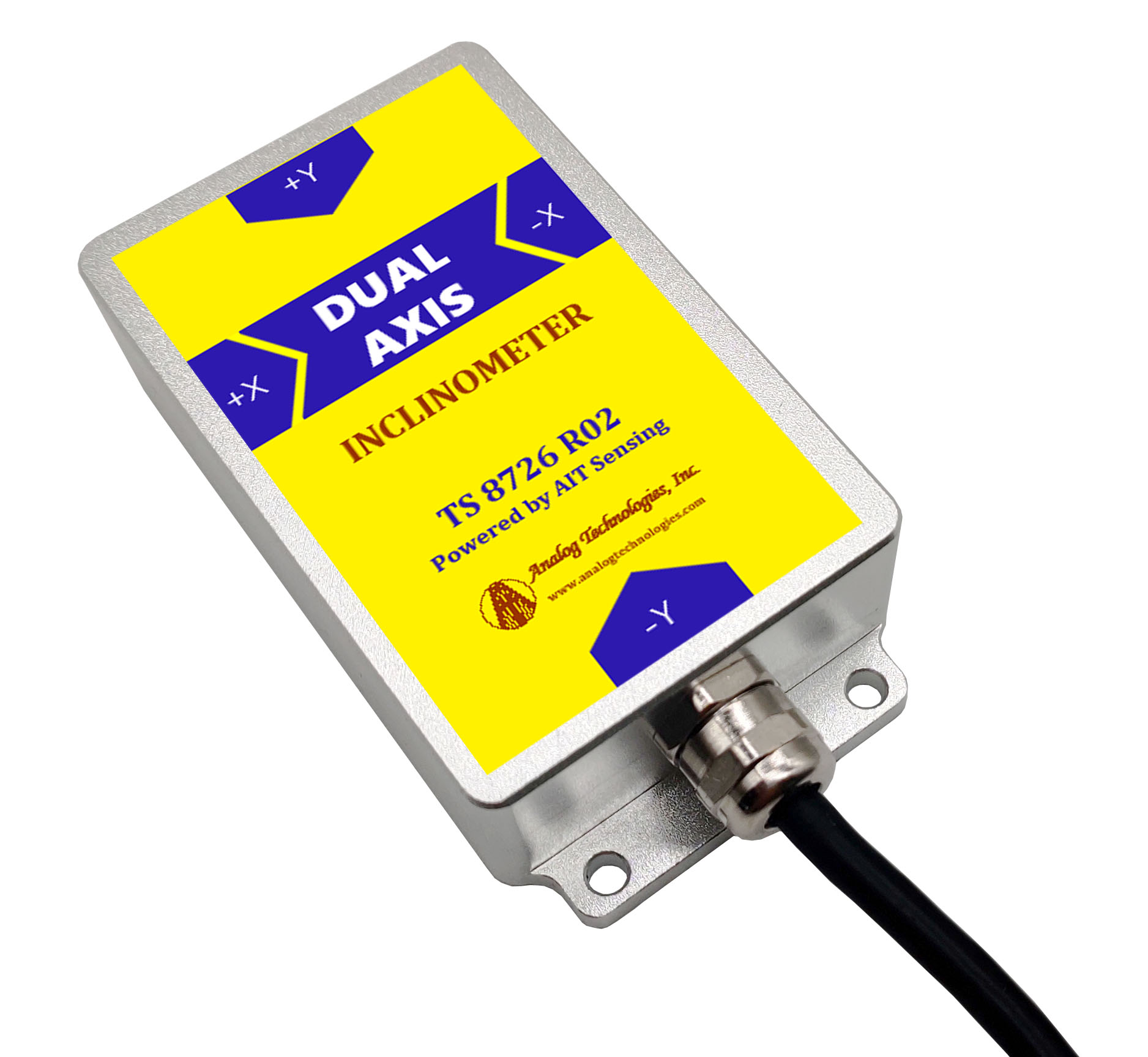

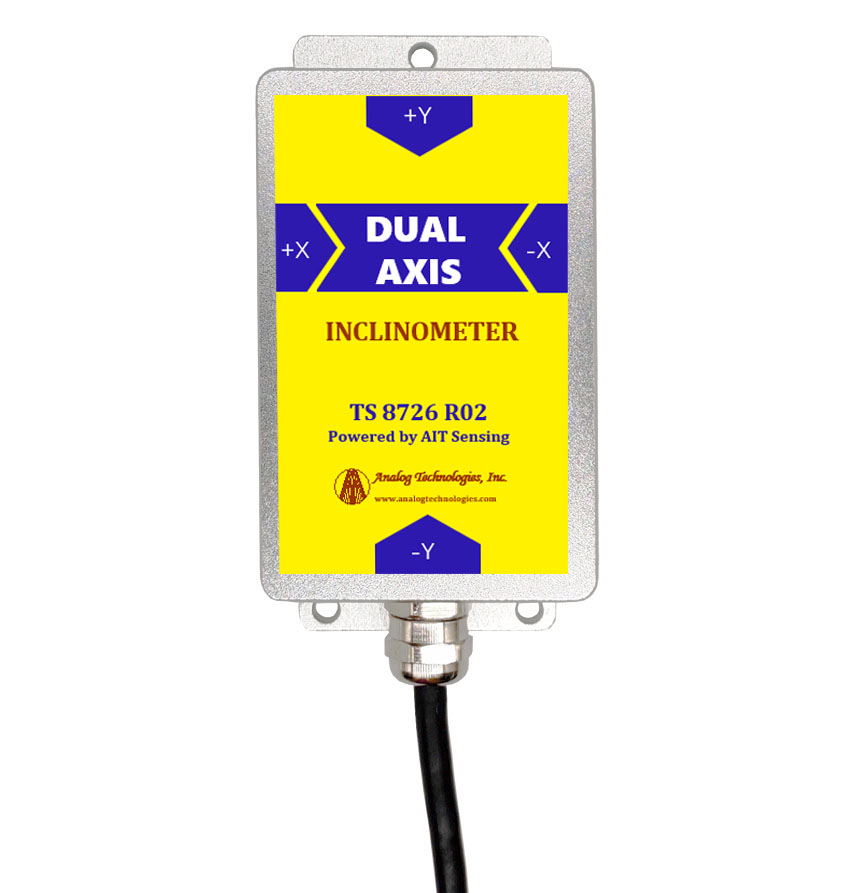

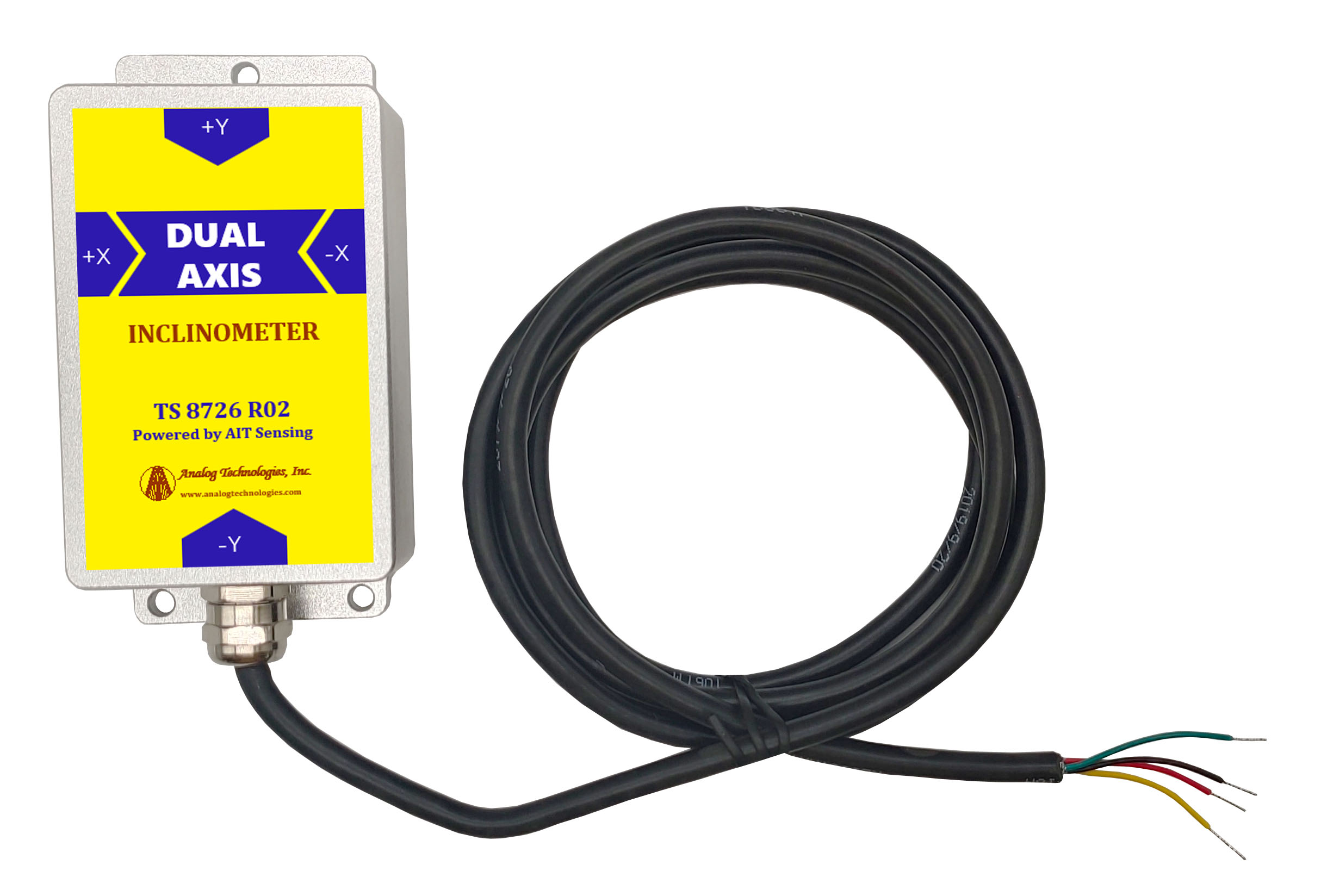

Low Cost Inertial Measurement TS-8726-R02-485

Availability: In Stock

FEATURES

●Dual Axis Inclination Measurement  ●High resolution: 0.0007° ●Power Supply: 9 ~ 36V ●Highest Accuracy: 0.003° ●Measurement Range: ±30° ●Output: RS232/RS485/TTL ●IP67 Protection Level  ●Wide temperature work: −40°C ~ +85°C

APPLICATIONS

⚫ Wind Tower Tilt Monitoring ⚫ Bridge And Dam Monitoring ⚫ Railroad Gauge Ruler Leveling ⚫ Exploration Surveying and Mapping Equipment ⚫ Lifting Equipment Inclination Control ⚫ Industrial Automation Attitude Control ⚫ High-Precision Platform Leveling ⚫ Construction Machinery Inclination ⚫ Measurement
Part Number STOCK Price Buy Now Datasheet Add TO WATCHLIST
TS-8726-R02-485 10 $849.2

The TS-8726-R02 is a Dual-axis high-precision inclinometer with MEMS technology and voltage output launched by AIT Sensing. It has a measurement range of ± 30° and an accuracy of up to 0.003°. It is a costeffective product. The product uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to reduce errors caused by environmental changes. This product adopts the principle of non-contact measurement, through measuring the change of the static gravity field, it is converted into the change of the inclination angle, and the change directly outputs the current attitude angle through the voltage method. It is simple to use, small in size, resistant to external electromagnetic interference, and strong in vibration and impact. The recommended choice for inclination measurement in industries such as industrial automation, surveying and mapping.
