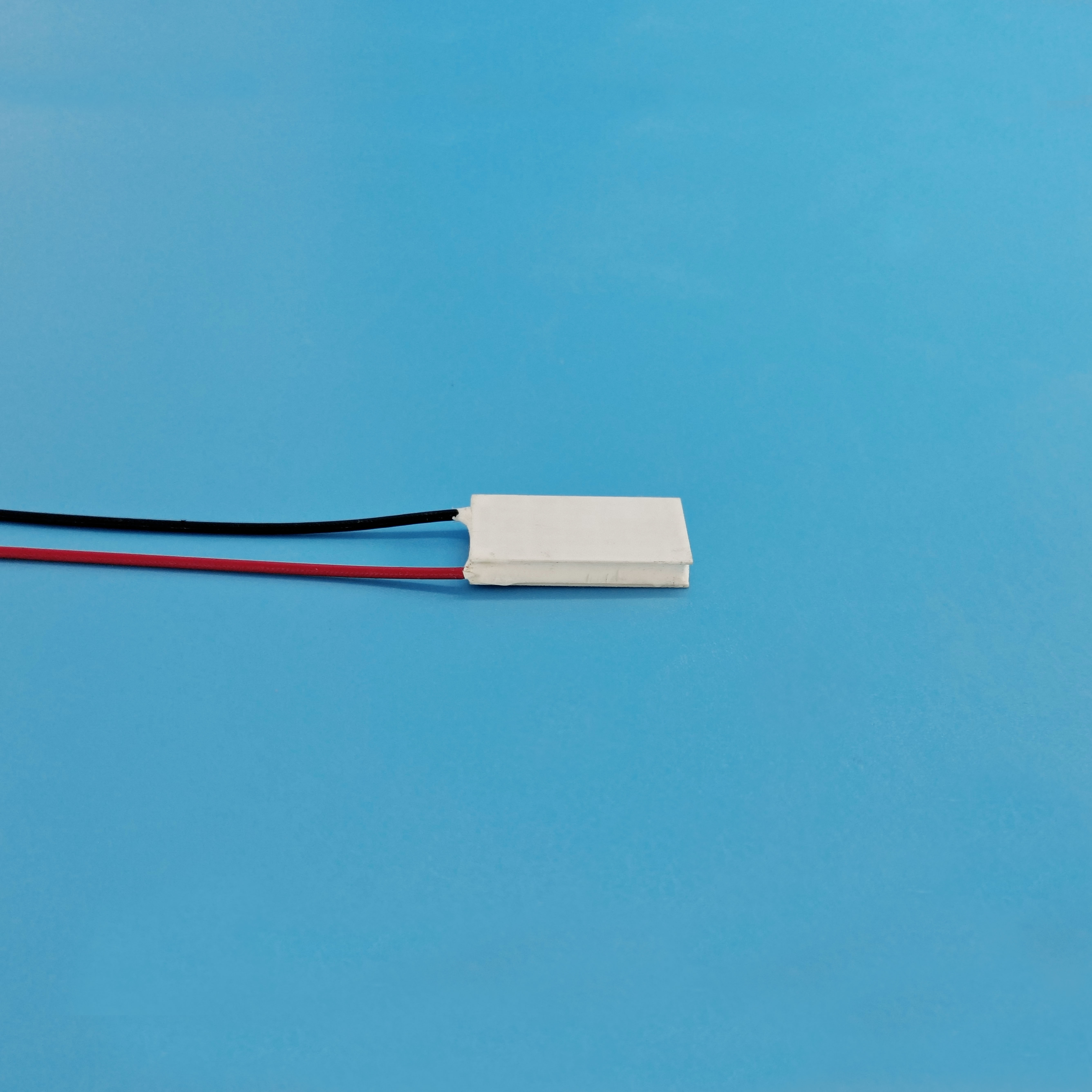

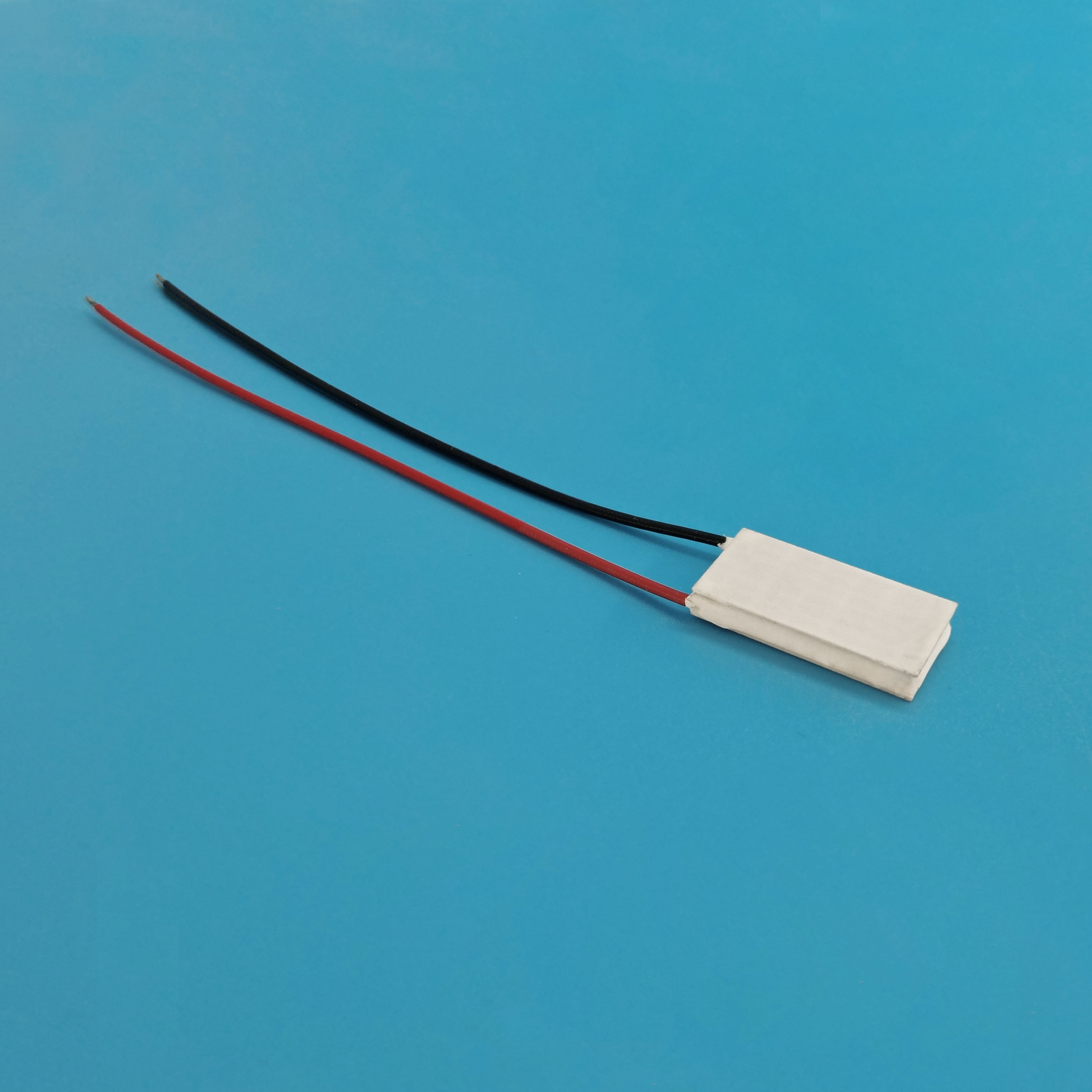

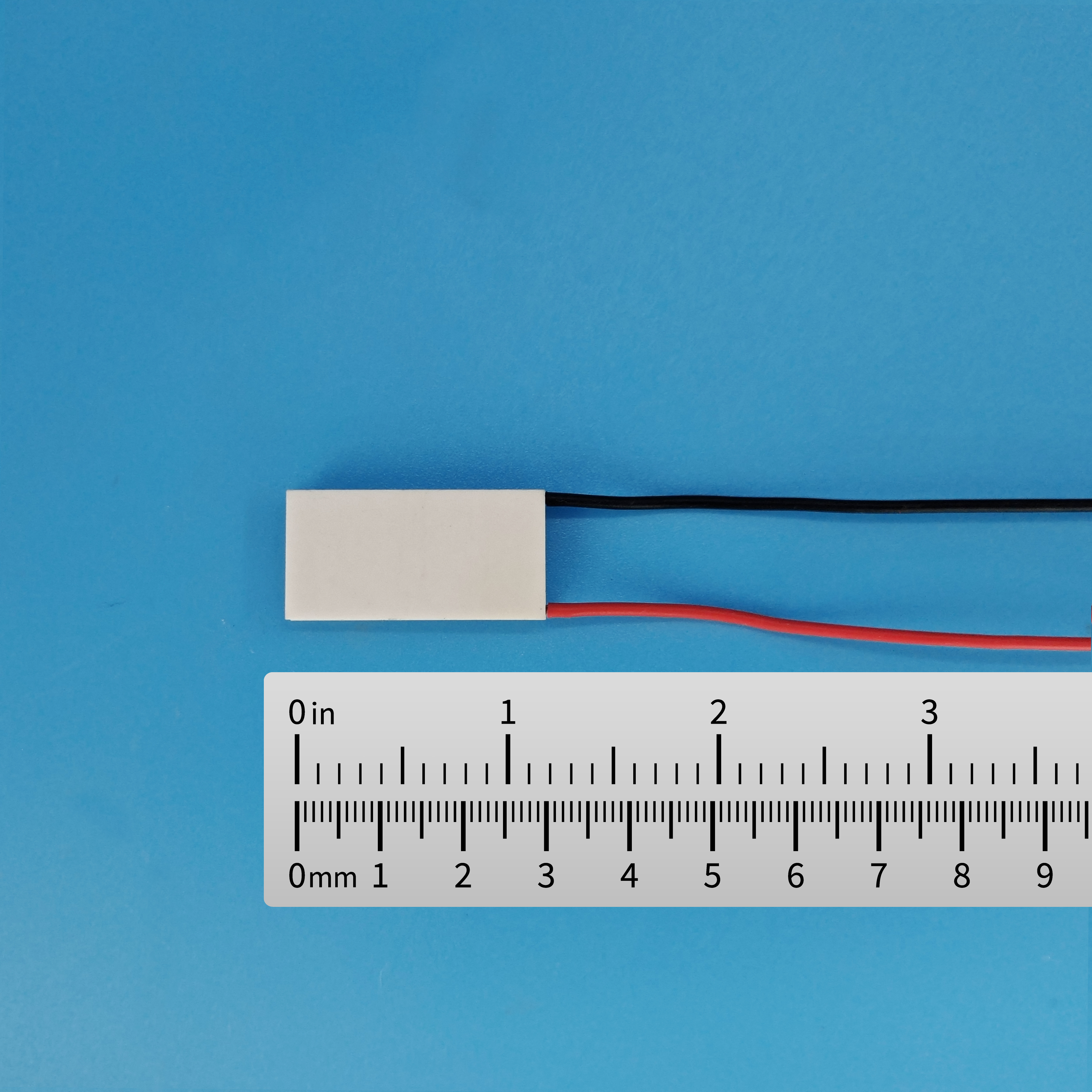

ATE1-35 TEC Module

This series of TEC (Thermoelectric Cooler) modules, ATE1-35, has 35 pairs of Peltier elements inside with a maximum voltage of 4.2 Volt, there are several options for maximum current, resulting in different power gratings, as shown in Table 1 below. They are designed for regulating the temperature of the target objects precisely and can be controlled by our TEC controllers to build highly stable and efficient temperature regulating systems. The ATE1-35 series TECs can be used with our thermistors as well to achieve precise and stable temperature sensing. The ATE1- 35 series TECs come in with highly flat bare ceramic surfaces on the both sides, they can be mounted onto flat metal surfaces by inserting thin layers of thermally conductive filler materials, the so-called thermal pads, or placing a thin layer of thermal paste. When mounting, make sure that proper pressure is applied constantly to keep good thermal contacting between the metal and the TEC plates, minimizing thermal resistance between them.
