Product Overview

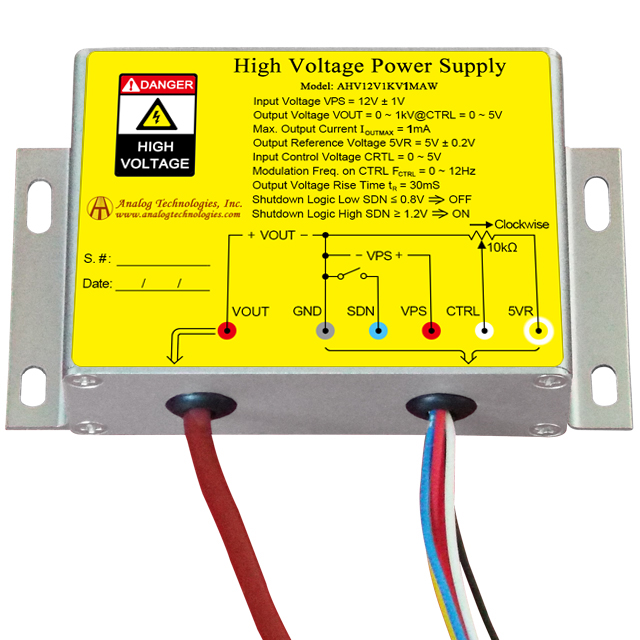

The AHV12V1KV1MAW represents one of our most sought-after high voltage power supply modules. This high-performance unit delivers exceptional precision, complete output voltage modulation range, and superior linear regulation capabilities.
Technical Specifications
- Input Voltage Range: 11V to 13V DC
- Output Voltage: 1kV DC
- Maximum Output Current: 1mA
- Compact Dimensions: 82mm × 55mm × 28mm (L×W×H)
- Control Interface: Operates at logic low (1.2V) or in unconnected state
Design Architecture
The module incorporates several critical functional blocks:
- Input power supply conditioning
- DC-AC inversion stage
- Step-up transformer
- AC-DC rectification
- Ripple by-pass filtering
- Output voltage sensing and feedback
- Error amplification and control circuitry
Safety Considerations
While the module includes built-in protection circuits, users must observe these critical safety measures:
- Strictly avoid high voltage short circuits
- Ensure perfect insulation between high voltage outputs and surrounding components
- Maintain proper isolation to prevent potential electrical shock hazards
Applications
This versatile power module finds applications across various industries requiring reliable high voltage conversion in a compact form factor. Its robust design and precise regulation make it suitable for demanding technical and industrial applications.
Quality Assurance
All our high voltage power supplies undergo rigorous quality control processes to ensure reliable performance and long-term durability in field applications.
