High Voltage Power Supply |M01 Series DC-DC High Voltage Power Supply AM01HV12VN1KV1MAP

M01 Series DC-DC High Voltage Power Supply AM01HV12VN1KV1MAP

Availability: In Stock

FEATURES

●Low Power Consumption ●High Efficiency ●High Stability ●Output Current and Voltage Monitors ●Small Output Ripple, Time Drift, and Temperature Drift ●Overload and Short Circuit Protection ●Continuous Linear Adjustment for Output Voltage ●Metal Enclosure for Zero EMIS ●Easy Control and Installation ●Customizable

APPLICATIONS

⚫ion beam injection, ⚫semiconductor technology, ⚫electron beam welding,⚫ capacitor charging, ⚫high power radio frequency transmitter, ⚫accelerator, ⚫CW laser,⚫ high voltage insulation test, ⚫lithography technology, ⚫X-ray system, ⚫electrostatic applications, ⚫scientific experiments, ⚫industrial applications ⚫other fields.

Ordering Info.
Description
Help us improve webpage

Part Number	STOCK	1-9PCs	10-49PCs	50-99 PCs	100-99999 PCs	Buy Now	Datasheet	Add TO WATCHLIST
AM01HV12VN1KV1MAP	0	$129	$119	$109	$99

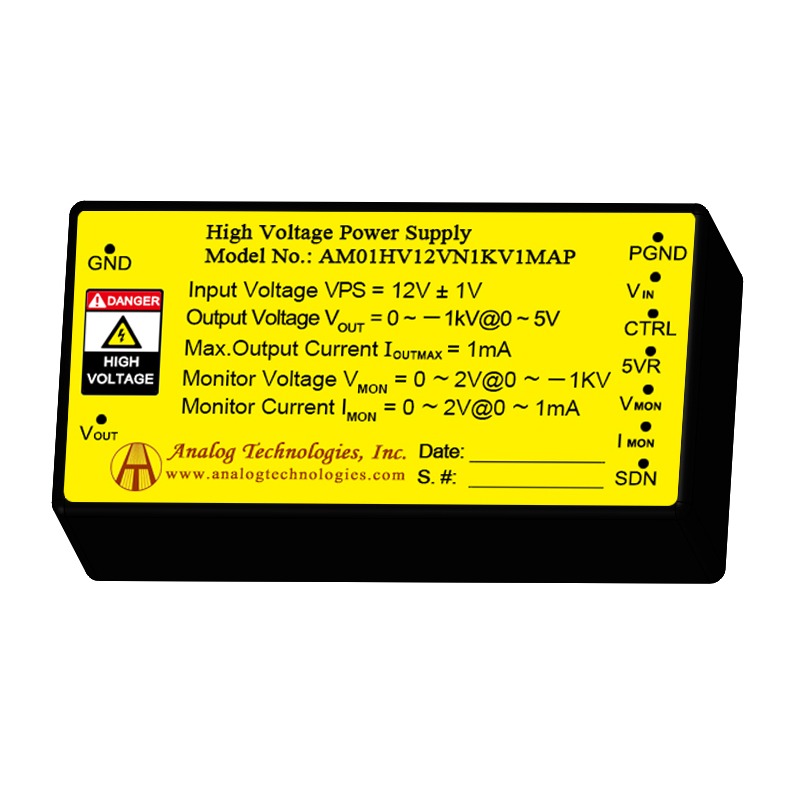

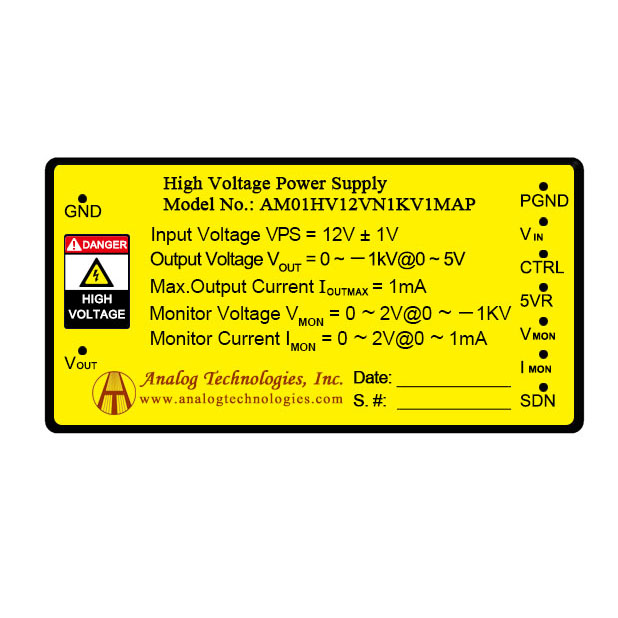

AM01HV12VN1KV1MAP is a combination of switching step-up technology and linear regulation, which converts the low input voltage into a stable high output voltage. It comes with output short-circuit protection and a wide range of output voltage adjustments. This high voltage power supply also features ultra-small size, light weight, moisture proof, shockproof, metal enclosure, and zero EMIs.
