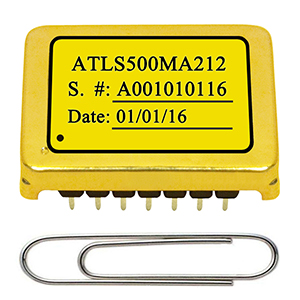

S | ATLS500MA212 | ATLS212EV1.0 |  |
$79 | 9 |   |
No | Constant current | DC | High voltage & Constant current |
4.5V to 15V | 0.5A | 0.2VVPS to 0.8VVPS | <15µA | 10kHz | 30us | 80us | 25.4×20×5 | DIP |
 |

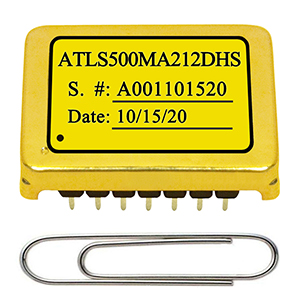

S | ATLS500MA212DHS |
ATLS212EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High voltage & Constant current |
4.5V to 15V | 0.5A | 0.2VVPS to 0.8VVPS | <6µA | 10kHz | 10us | 26us | 25.4×20×5 | DIP |
 |
S | ATLS1A212D | ATLS212EV1.0 | |
$79 | 1 | |
No | Constant current | DC | High voltage & Constant current |
4.5V to 15V | 1A | 0.2VVPS to 0.8VVPS | <3.47µA | 10kHz | 30us | 80us | 25.4×20×5 | DIP |
 |
S | ATLS1A212DHS | ATLS212EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High voltage & Constant current |
4.5V to 15V | 1A | 0.2VVPS to 0.8VVPS | <6µA | 10kHz | 10us | 26us | 25.4×20×5 | DIP |
 |
S | ATLS2A212D | ATLS212EV1.0 | |
$79 | 12 | |
No | Constant current | DC | High efficiency | 4.5V to 15V | 2A | 0.2VVPS to 0.8VVPS | <4.39µA | 10kHz | 30us | 80us | 25.4×20×5 | DIP |
|
S | ATLS2A212DHS | ATLS212EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High efficiency | 4.5V to 15V | 2A | 0.2VVPS to 0.8VVPS | <6µA | 10kHz | 10us | 26us | 25.4×20×5 | DIP |
 |

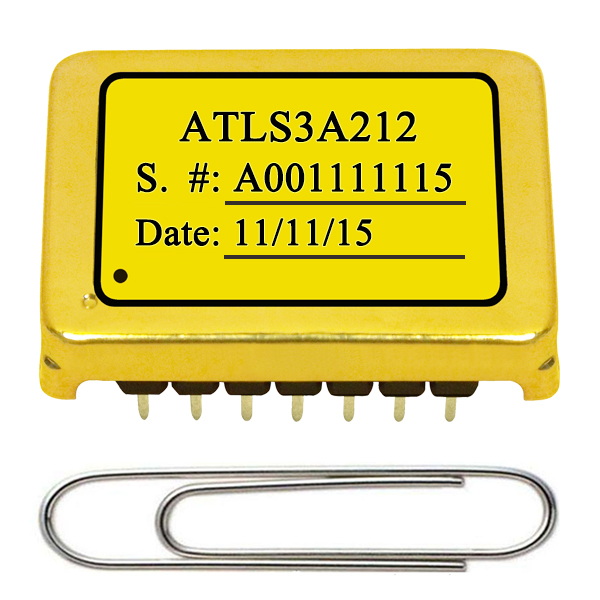

S | ATLS3A212 | ATLS212EV1.0 | |
$79 | 42 | |
No | Constant current | DC | High efficiency | 4.5V to 15V | 3A | 0.2VVPS to 0.8VVPS | <5.21µA | 10kHz | 30us | 80us | 25.4×20×5 | DIP |
 |

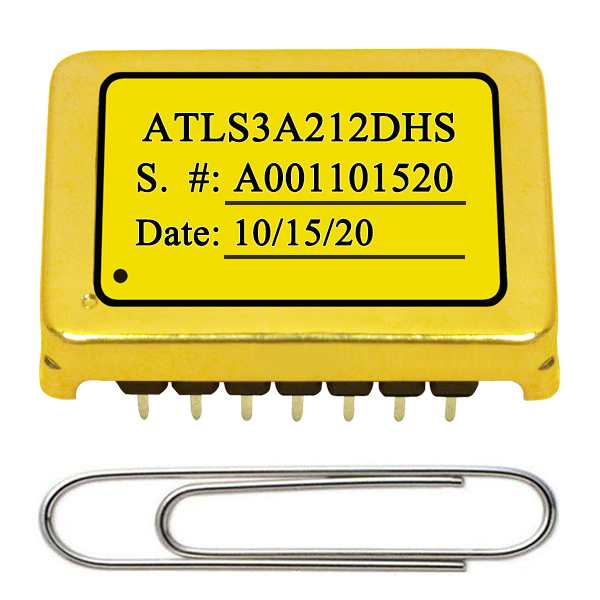

S | ATLS3A212DHS | ATLS212EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High efficiency | 4.5V to 15V | 3A | 0.2VVPS to 0.8VVPS | <6µA | 10kHz | 10us | 26us | 25.4×20×5 | DIP |
 |
S | ATLS5A212 | ATLS212EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High efficiency | 4.5V to 15V | 5A | 0.2VVPS to 0.8VVPS | <5.21µA | 10kHz | 30us | 80us | 25.4×20×5 | DIP |
 |
S | ATLS4A214 | ATLS214EV1.0 | |
$79 | 3 | |
No | Constant current | DC | High efficiency | 5V to 14V | 4A | 0.2VVPS to 0.8VVPS | <12µA | 4kHz | 100us | 180us | 27.4×21×5.7 | DIP |
 |
S | ATLS6A214 | ATLS214EV1.0 | |
$79 | 4 | |
No | Constant current | DC | High efficiency | 5V to 14V | 6A | 0.2VVPS to 0.8VVPS | <12µA | 4kHz | 100us | 180us | 27.4×21×5.7 | DIP |
|

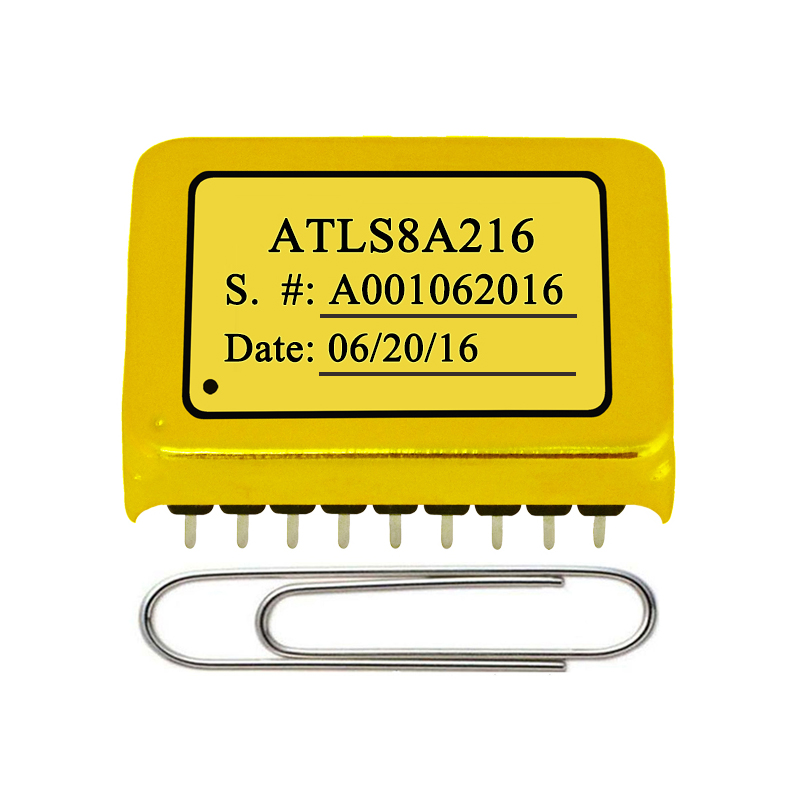

S | ATLS8A216 | ATLS214EV1.0 | |
$99 | 5 | |
No | Constant current | DC | High efficiency | 5.5V to 15V | 8A | 0.2VVPS to 0.8VVPS | <12µA | 20kHz | 100us | 180us | 27.4×21×5.7 | DIP/SMT |
 |
S | ATLS10A216 | ATLS216EV1.0 | |
$99 | 0 | |
No | Constant current | DC | High efficiency | 5.5V to 15V | 10A | 0.2VVPS to 0.8VVPS | <12µA | 20kHz | 100us | 180us | 27.4×21×5.7 | DIP/SMT |
 |

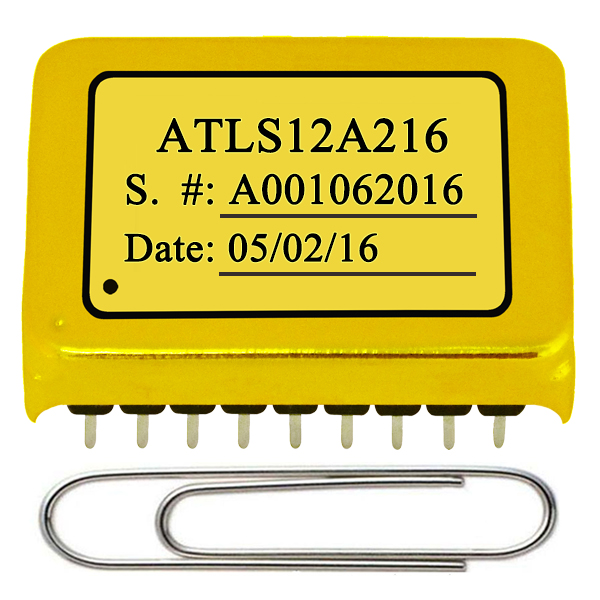

S | ATLS12A216 | ATLS216EV1.0 | |
$99 | 0 | |
No | Constant current | DC | High efficiency | 5.5V to 15V | 12A | 0.2VVPS to 0.8VVPS | <12µA | 20kHz | 100us | 180us | 27.4×21×5.7 | DIP/SMT |
 |
S | ATLS4A217 | ATLS216EV1.0 | |
$79 | 1 | |
No | Constant current | DC | High efficiency | 5.5V to 28V | 4A | 0.2VVPS to 0.8VVPS | <12µA | 20kHz | 100us | 180us | 27.4×21×5.7 | DIP/SMT |
 |

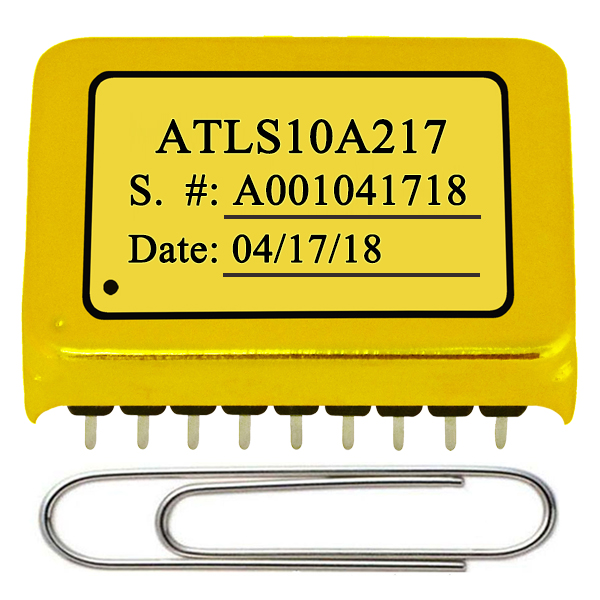

S | ATLS10A217 | ATLS216EV1.0 | |
$79 | 10 | |
No | Constant current | DC | High efficiency | 5.5V to 28V | 10A | 0.2VVPS to 0.8VVPS | <12µA | 20kHz | 100us | 180us | 27.4×21×5.7 | DIP/SMT |
 |
S | ATLS15A218 | ATLS218EV2.0 | |
$79 | 26 | |
No | Constant current | DC | High efficiency | 5.5V to 20V | 15A | 0.2VVPS to 0.8VVPS | <20µAP-P | 10kHz | 100us | 180us | 35.78×35.78×11.5 | DIP |
 |
S | ATLS25A219D | - | |
$79 | 66 | |
No | Constant current | DC | High voltage&high current | 8.5V to 40V | 25A | 0.2VVPS to 0.8VVPS | <20µAP-P | - | 28us | 28us | 54.28×54.28×15.2 | DIP |
 |
S | ATLS25A219CH | - | |
$299.15 | 0 | |
No | Constant current | DC | High voltage&high current | 8.5V to 40V | 25A | 0.2VVPS to 0.8VVPS | <20µAP-P | - | 28us | 28us | 63.00×61.00×16.7 | Chassis mount |
 |
S | ATLS25A219GUI | - | |
$333.80 | 0 | |
No | Constant current | DC | High voltage&high current | 8.5V to 40V | 25A | 0.2VVPS to 0.8VVPS | <15µAP-P | - | 28us | 28us | 63.00×61.00×16.7 | Chassis mount with GUI interface |
 |
S | ALDD28V5A401 | - | |
$622.55 | 1 | |
Yes | High Current High Voltage |
DC | Low noise: 12µAP-P | 12V~27V | 5A | 0.2VVPS to 0.8VVPS | <15µAP-P | 10kHz | 200nS | 192nS | 68.5×61.0×16.6 | DIP |
|
S | ALDD28V15A401 | - | |
$646.80 | 1 | |
Yes | High Current High Voltage |
DC | Low noise: 12µAP-P | 12V~27V | 15A | 0.2VVPS to 0.8VVPS | <15µAP-P | 10kHz | 200nS | 192nS | 68.5×61.0×16.6 | DIP |
 |

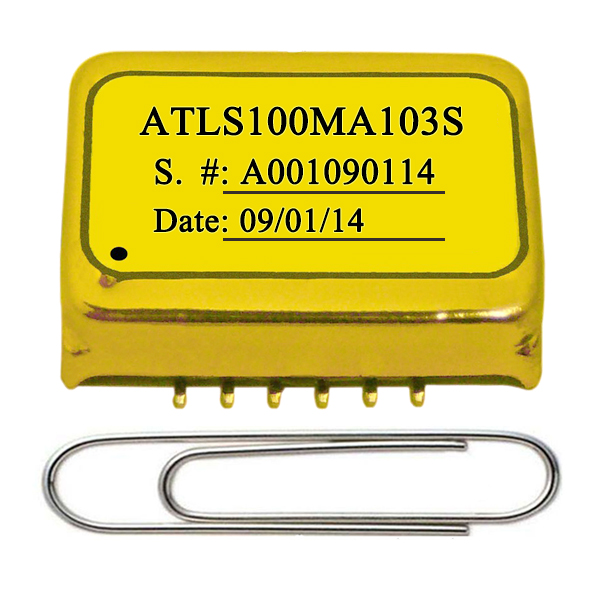

L | ATLS100MA103 | ATLS1A103DEV1.0 | |
$59 | 4 | |
No | High Current High Voltage |
DC | Low noise: 1.5µAP-P | 3.0V to 5.5V | 0.1A | 0V to VVPS-1V | <1.5µAP-P | 1MHz | 300nS | 1.18uS | 20×14.5×5 | DIP/SMT |
 |

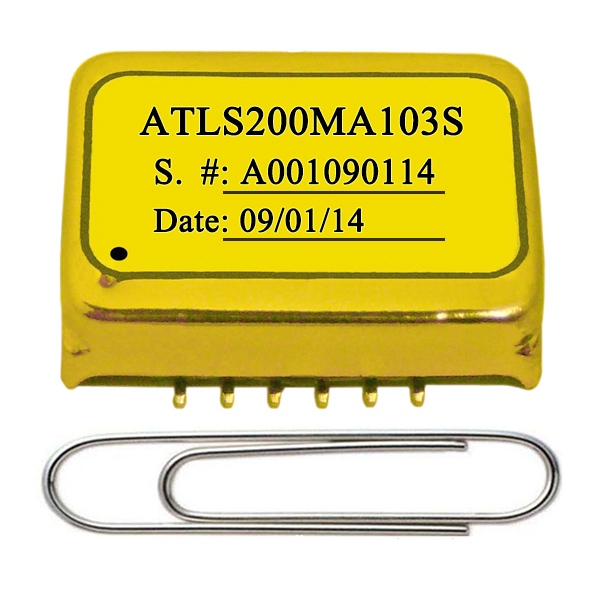

L | ATLS200MA103 | ATLS1A103DEV1.0 | |
$59 | 4 | |
No | High Efficiency High Voltage |
DC | Low noise: 2.5µAP-P | 3.0V to 5.5V | 0.2A | 0V to VVPS-1V | <2.5µAP-P | 2MHz | 300nS | 200nS | 20×14.5×5 | DIP/SMT |
 |

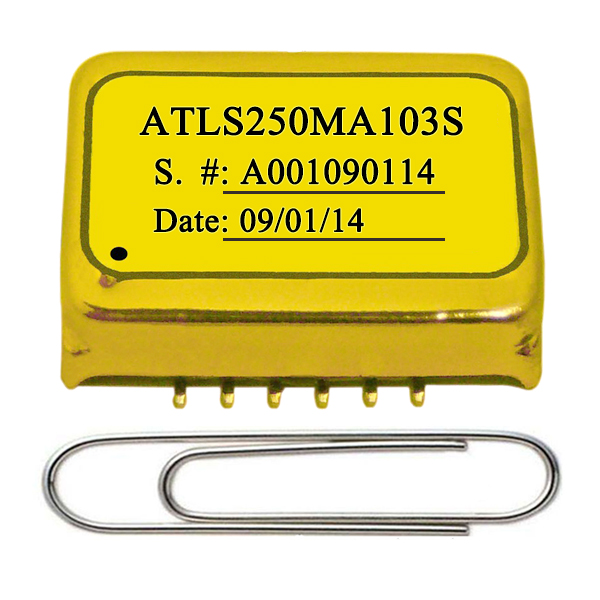

L | ATLS250MA103 | ATLS1A103DEV1.0 | |
$59 | 52 | |
No | High Efficiency High Voltage |
DC | Low noise: 2.5µAP-P | 3.0V to 5.5V | 0.25A | 0V to VVPS-1V | <2.5µAP-P | 2MHz | 300nS | 200nS | 20×14.5×5 | DIP/SMT |
 |
L | ATLS500MA103 | ATLS1A103DEV1.0 | |
$59 | 10 | |
No | Constant current Rise time: 300ns LDC = 0V |
DC | Low noise: 5μAP-P | 3.0V to 5.5V | 0.5A | 0V to VVPS-1V | <5μAP-P | 2MHz | 300nS | 490nS | 20×14.5×5 | DIP/SMT |
 |

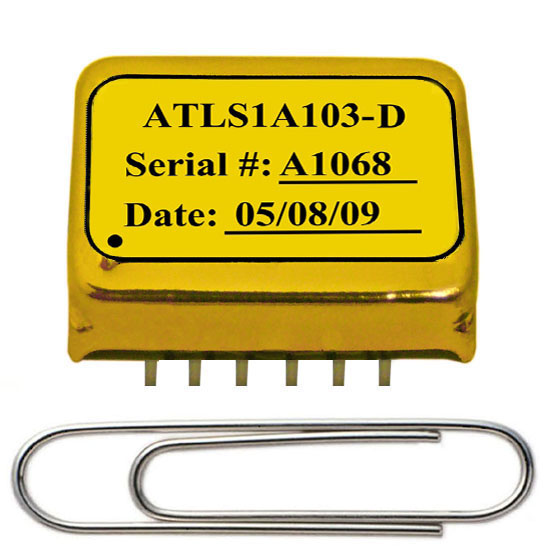

L | ATLS1A103 | ATLS1A103DEV1.0 | |
$59 | 30 | |
No | Constant current Rise time: 300ns LDC = 0V |
DC | Low noise: 6µAP-P | 3.0V to 5.5V | 1A | 0V to VVPS-1V | <6µAP-P | 2MHz | 300nS | 210nS | 20×14.5×5 | DIP/SMT |
 |
L | ATLS100MA104 | ATLS1A103DEV1.0 | |
$69 | 3 | |
No | Constant current | DC | Low noise: 3.96µAP-P | 3.1V~5.5V | 0.1A | 0.5V~3.5V | <3.96µAP-P | 7.61MHz | 75nS | 46nS | 20×14.5×8 | DIP/SMT |
 |
L | ATLS250MA104 | ATLS1A103DEV1.0 | |
$69 | 11 | |
No | Constant current | DC | Low noise: 3.96µAP-P | 3.1V~5.5V | 0.25A | 0.5V~3.5V | <3.96µAP-P | 7.61MHz | 75nS | 46nS | 20×14.5×8 | DIP/SMT |
 |
L | ATLS500MA104 | ATLS1A103DEV1.0 | |
$69 | 25 | |
No | Constant current | DC | Low noise: 3.96µAP-P | 3.1V~5.5V | 0.5A | 0.5V~3.5V | <3.96µAP-P | 3.5MHz | 100nS | 400nS | 20.14×16.8×5 | DIP/SMT |
 |
L | ATLS1A104D | ATLS1A103DEV1.0 | |
$69 | 9 | |
No | Constant current | DC | Low noise: 3.96µAP-P | 3.1V~5.5V | 1A | 0.5V~3.5V | <3.96µAP-P | 7.61MHz | 75nS | 46nS | 20×14.5×8 | DIP |
 |
L | ATLS1.5A104D | ATLS1A103DEV1.0 | |
$69 | 6 | |
No | Constant current | DC | Low noise: 6.27µAP-P | 3.1V~5.5V | 1.5A | 0.5V~3.5V | <6.27µAP-P | 1.82MHz | 200nS | 192nS | 20×14.5×8 | DIP |
 |
L | ATLS250MA106 | ATLS1A103DEV1.0 | |
$89 | 1 | |
No | Constant current | DC | Constant current & low noise |
3V to 5.5V | 0.25A | 1.5V to 4V | <4.5μAP-P | 100kHz | 1uS | 1.5uS | 20.14×14.6×5 | DIP/SMT |
 |
L | ATLS500MA106 | ATLS1A103DEV1.0 | |
$69 | 0 | |
No | Constant current | DC | Constant current & low noise |
3V to 5.5V | 0.5A | 1.5V to 4V | <4.5μAP-P | 200kHz | 1uS | 1.5uS | 20.14×14.6×5 | DIP/SMT |
 |

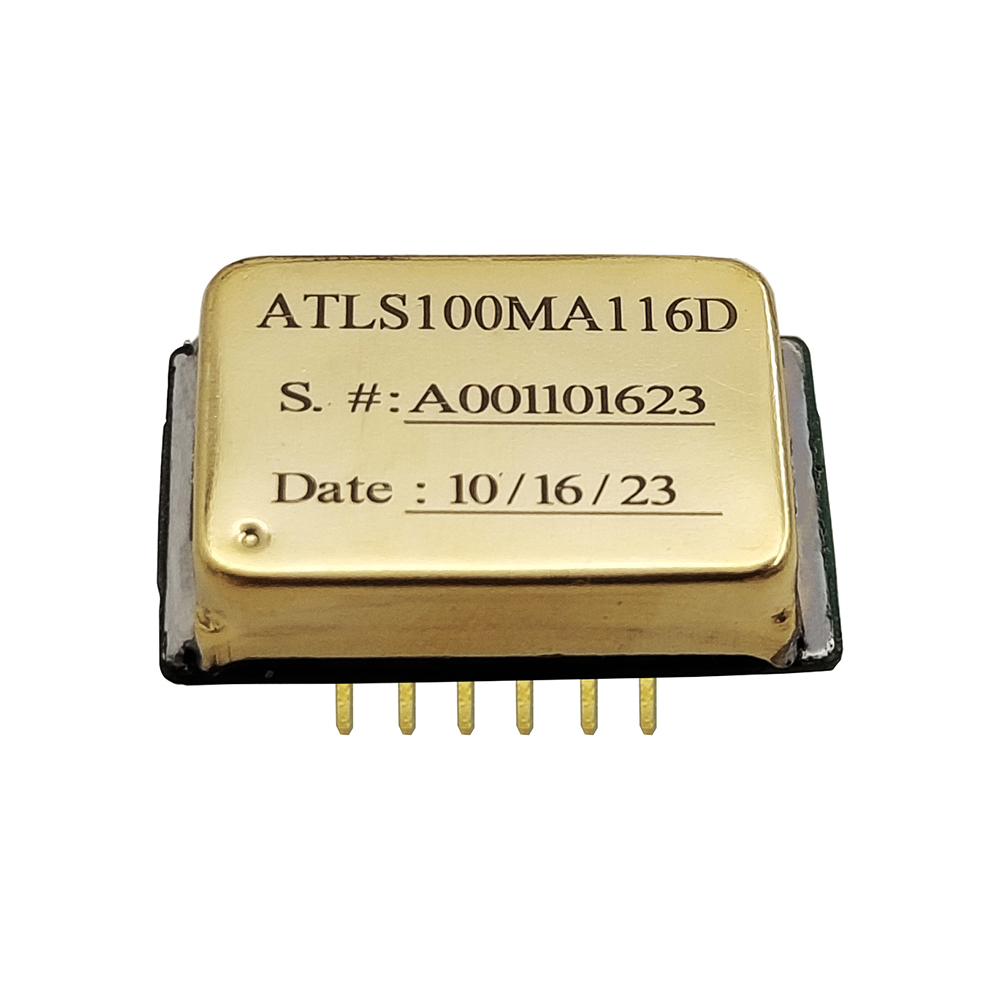

L | ATLS100MA116 | ATLS116EV1.0 | |
$89 | 0 | |
No | Constant current | DC | Constant current & low noise |
6.5V to 16V | 100mA | 1.5V~ VVPS-2V1.5V~ VVPS-2V | <300nAP-P | 1MHz | 170nS | 1.5uS | 22×14.6×8.6 | DIP/SMT |
 |

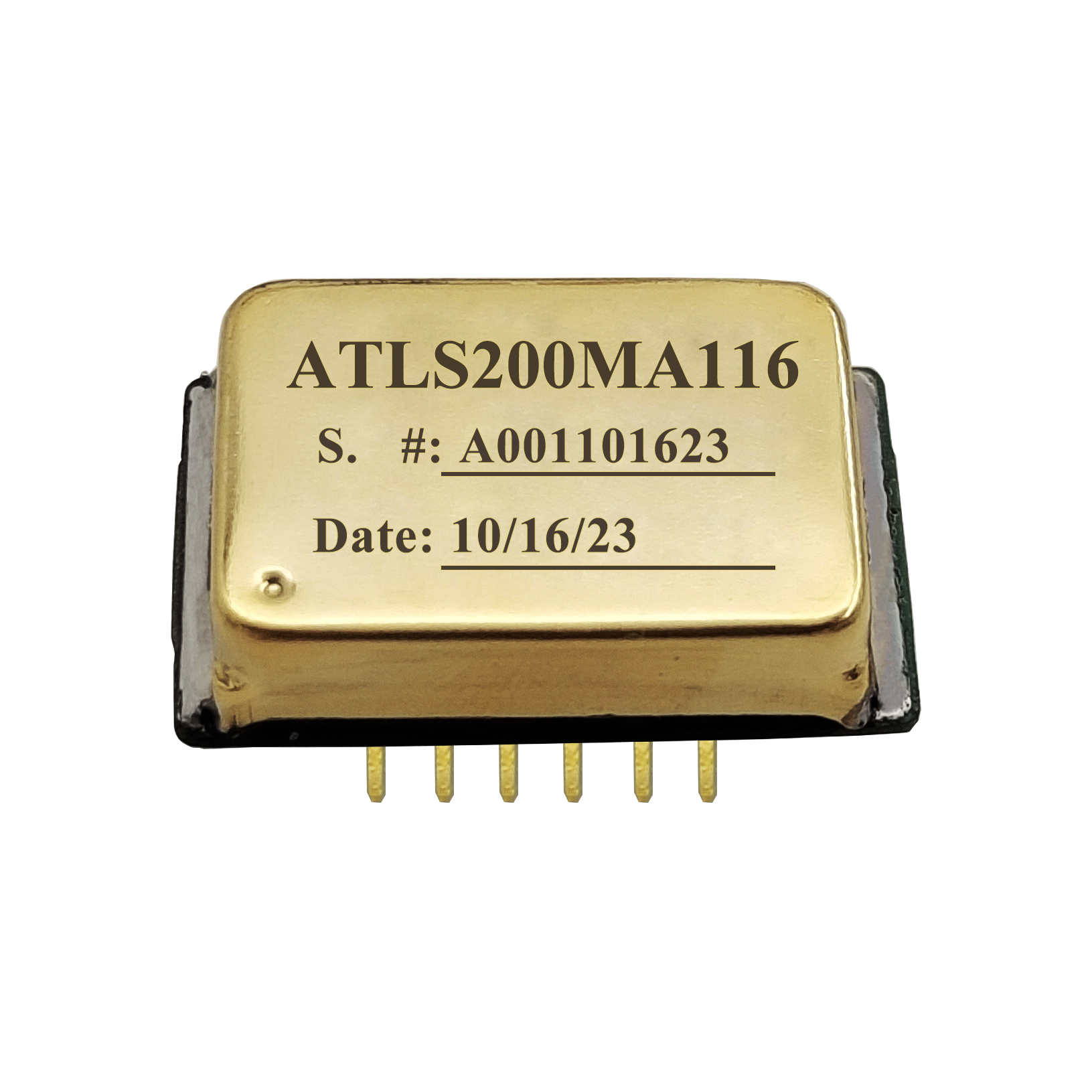

L | ATLS200MA116 | ATLS116EV1.0 | |
$89 | 1 | |
No | Constant current | DC | Constant current & low noise |
6.5V to 16V | 200mA | 1.5V~ VVPS-2V | <300nAP-P | 1MHz | 170nS | 1.5uS | 22×14.6×8.6 | DIP/SMT |
 |

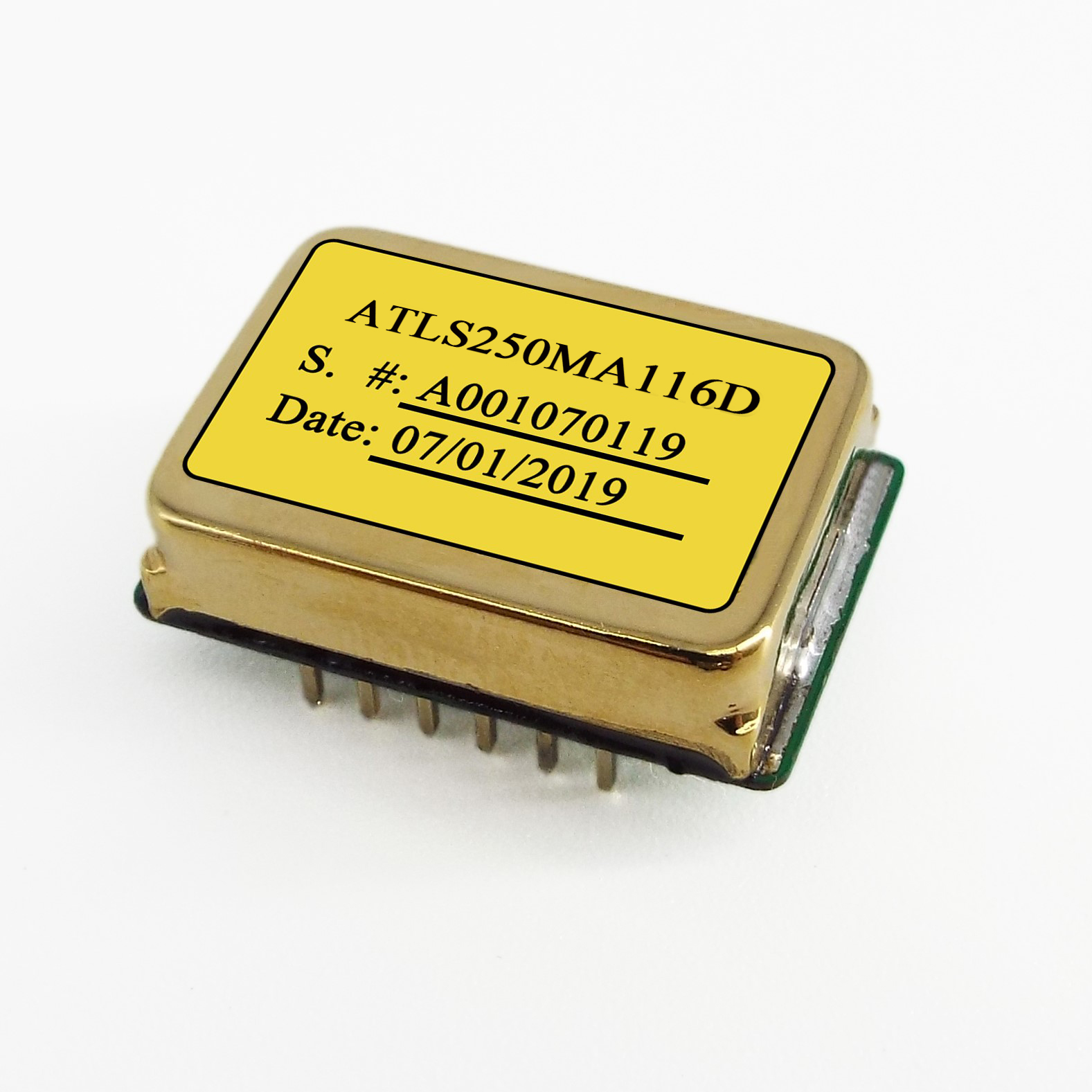

L | ATLS250MA116 | ATLS116EV1.0 | |
$89 | 0 | |
No | Constant current | DC | Constant current & low noise |
6.5V to 16V | 250mA | 1.5V~ VVPS-2V | <300nμAP-P | 1MHz | 170nS | 1.5uS | 22×14.6×8.6 | DIP/SMT |
|
L | ATLS250MA117 | ATLS216EV1.0 | |
$79 | 0 | |
No | Constant current | DC | High voltage & low noise |
3.3V to 10V | 250mA | 0.5V~ 8.5V | <0.5μAARM | 1.2MHz | 200nS | 200nS | 20.14×14.6×5 | DIP/SMT |
 |

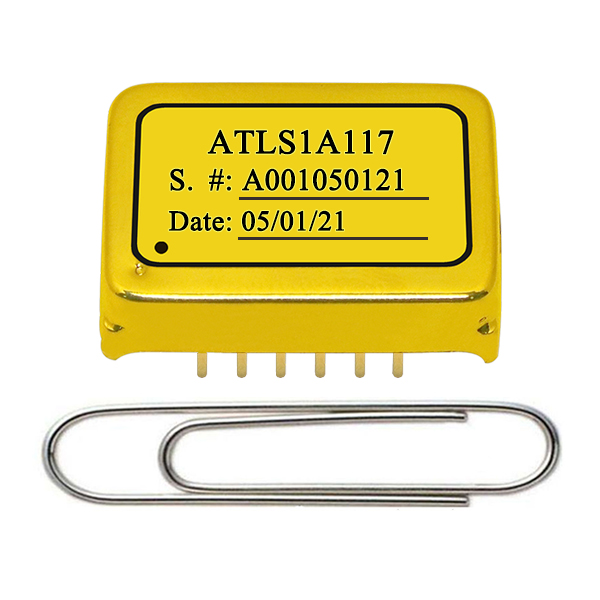

L | ATLS1A117 | ATLS216EV1.0 | |
$79 | 1 | |
No | Constant current | DC | High voltage & low noise |
3.3V to 10V | 1A | 0.5V~ 8.5V | <0.5μAARM | 1.2MHz | 200nS | 200nS | 20.14×14.6×5 | DIP/SMT |
 |
L | ATLS100MA118 | - | |
$523.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 0.125µAP-P | 10V~28V | 0.1A | 1V~VVPS-4V | <0.125µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |
L | ATLS200MA118 | - | |
$523.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 0.25µAP-P | 10V~28V | 0.2A | 1V~VVPS-4V | <0.25µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |

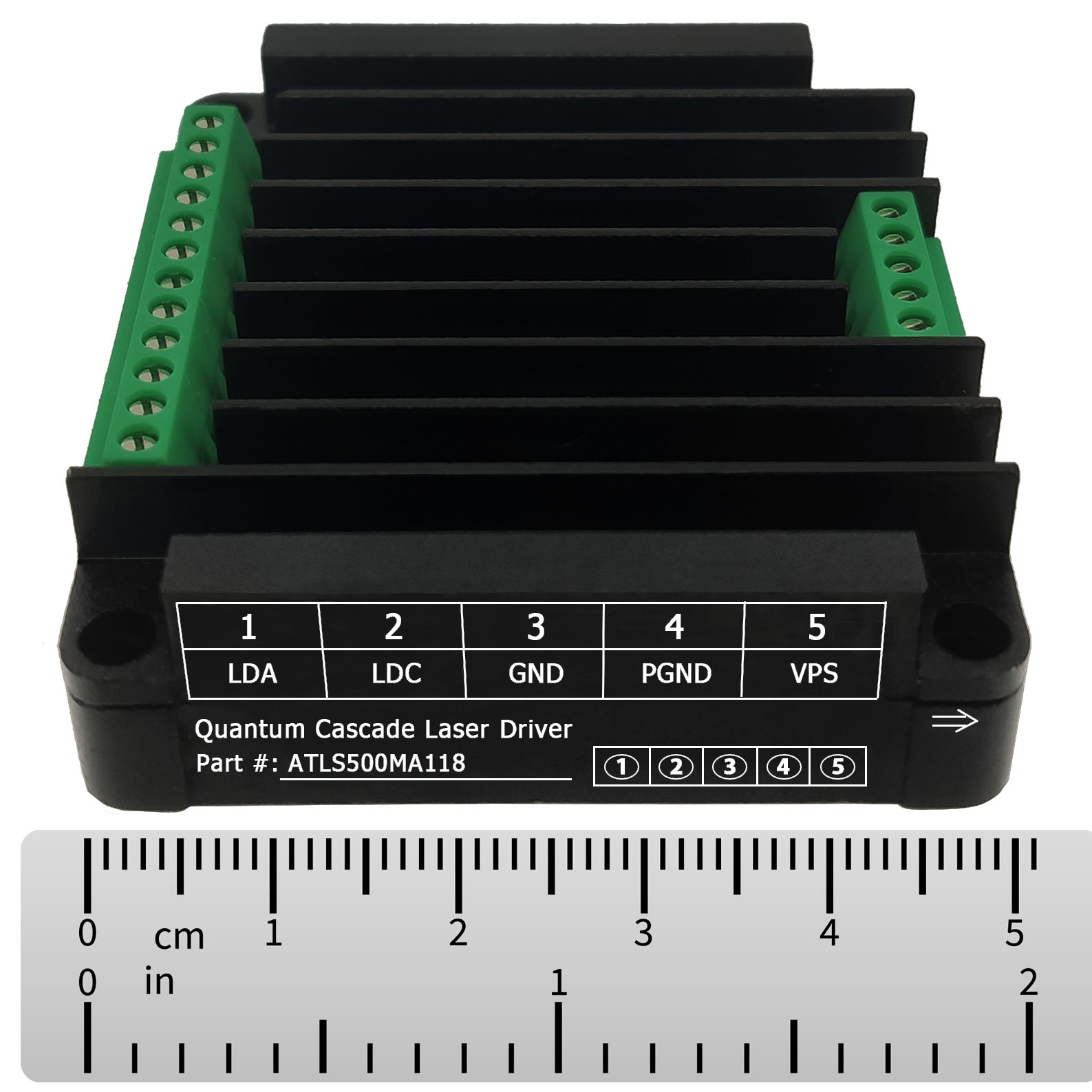

L | ATLS500MA118 | - | |
$523.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 0.5µAP-P | 10V~28V | 0.5A | 1V~VVPS-4V | <0.5µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |
L | ATLS1A118 | - | |
$628.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 1.25µAP-P | 10V~28V | 1A | 1V~VVPS-4V | <1.25µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |
L | ATLS2A118 | - | |
$733.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 2.5µAP-P | 10V~28V | 2A | 1V~VVPS-4V | <2.5µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |

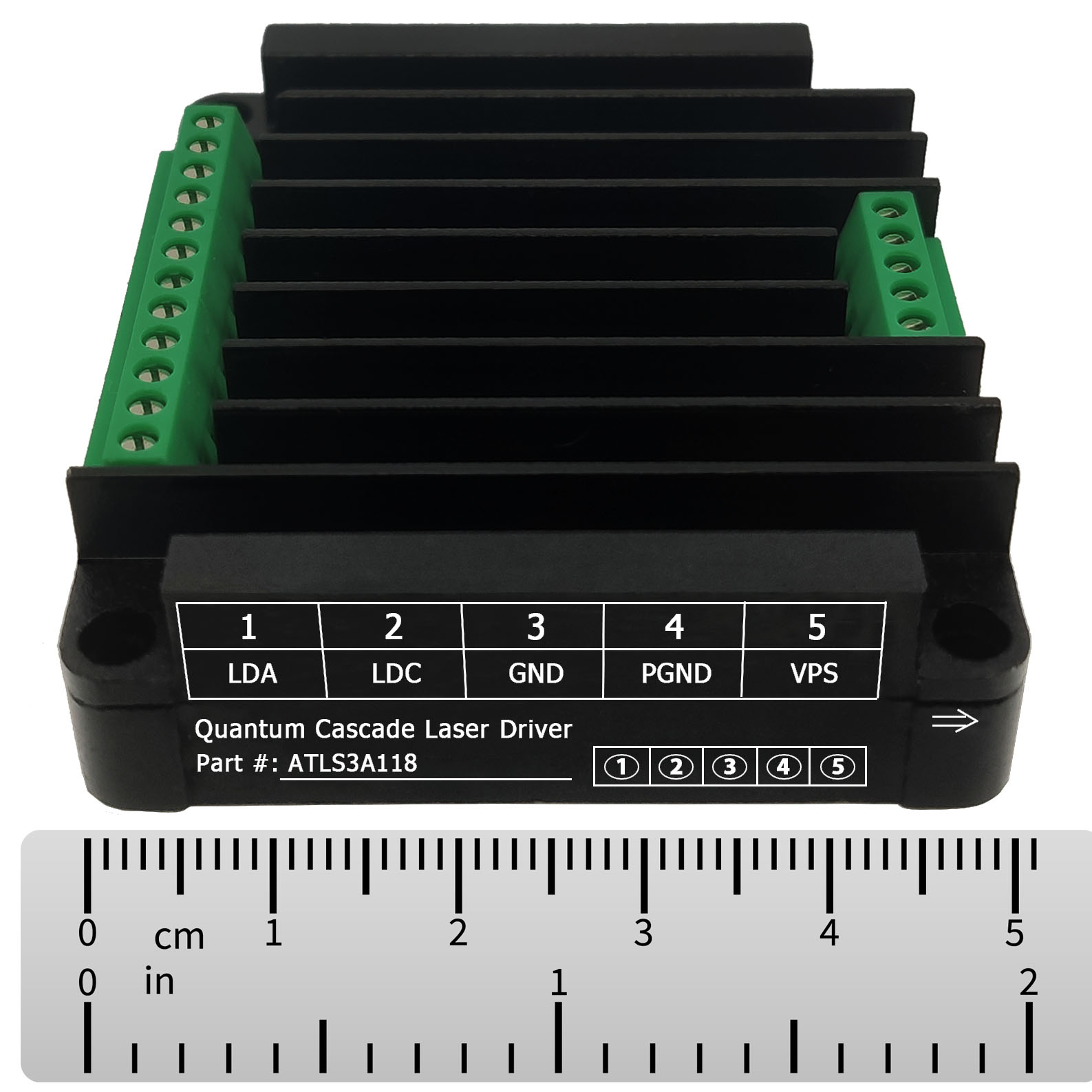

L | ATLS3A118 | - | |
$838.95 | 0 | |
No | Extremely Low Noise for Qutum Lasers |
DC | 3.75µAP-P | 10V~28V | 3A | 1V~VVPS-4V | <2.5µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP |
 |
L | ATLS10A118 | - | |
0 | No | Extremely Low Noise for Qutum Lasers |
DC | 12.5µAP-P | 10V~28V | 10A | 1V~VVPS-4V | <2.5µAP-P | 10kHz | 350nS | 350nS | 49.4×45..0×14.0 | DIP | ||
 |
S | ATLS500MA201D | ATLSXA201DEV1.0 | |
$79 | 10 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 0.5A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5.0 | DIP |
 |
S | ATLS1A201D | ATLSXA201DEV1.0 | |
$79 | 22 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 1A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5.0 | DIP |
 |

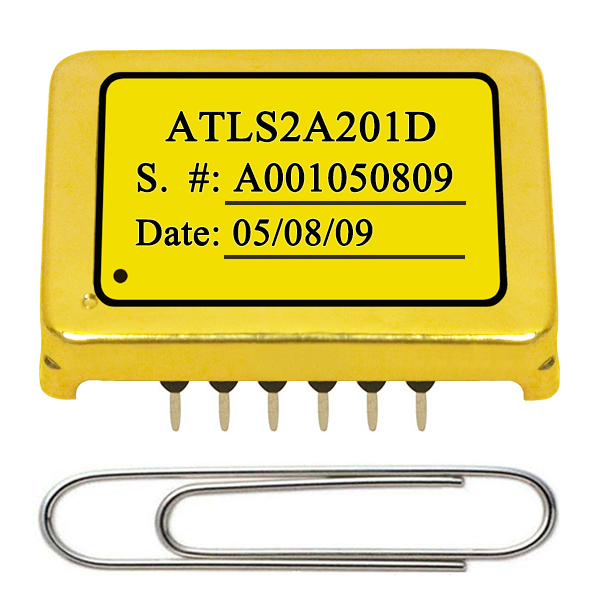

S | ATLS2A201D | ATLSXA201DEV1.0 | |
$79 | 22 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 2A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5.0 | DIP |
 |

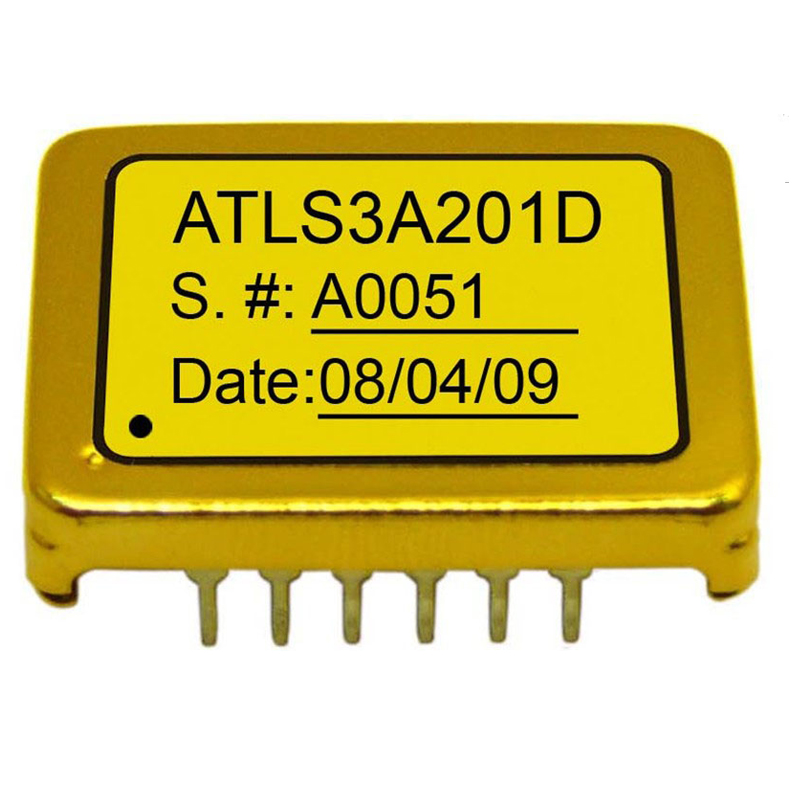

S | ATLS3A201D | ATLSXA201DEV1.0 | |
$79 | 20 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 3A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |

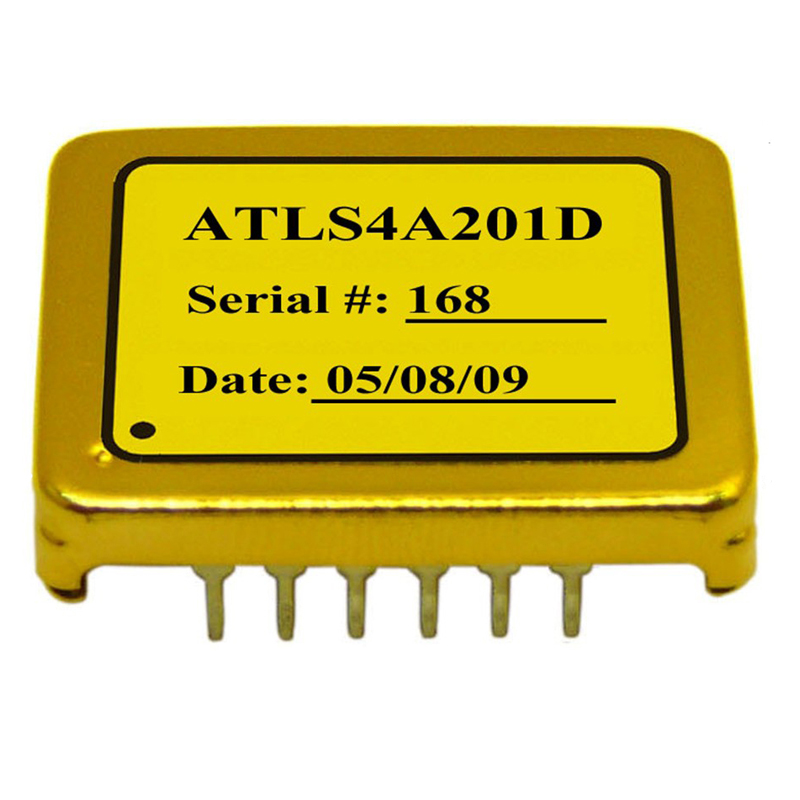

S | ATLS4A201D | ATLSXA201DEV1.0 | |
$79 | 0 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 4A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |

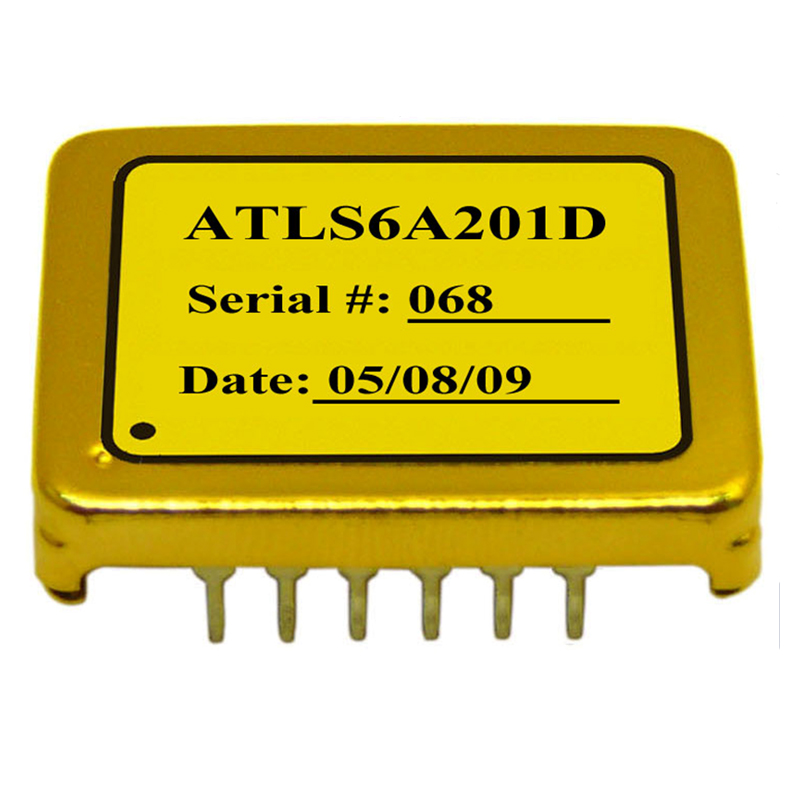

S | ATLS6A201D | ATLSXA201DEV1.0 | |
$79 | 22 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 6A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |
S | ATLS500MA202D | ATLSXA201DEV1.0 | |
$79 | 11 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 0.5A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |

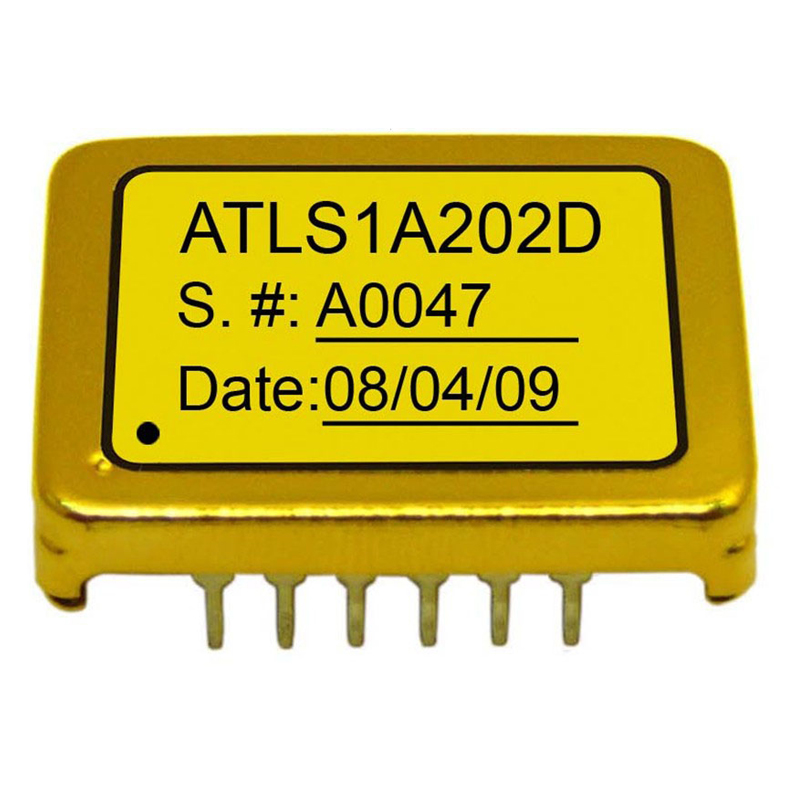

S | ATLS1A202D | ATLSXA201DEV1.0 | |
$79 | 2 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 1A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |

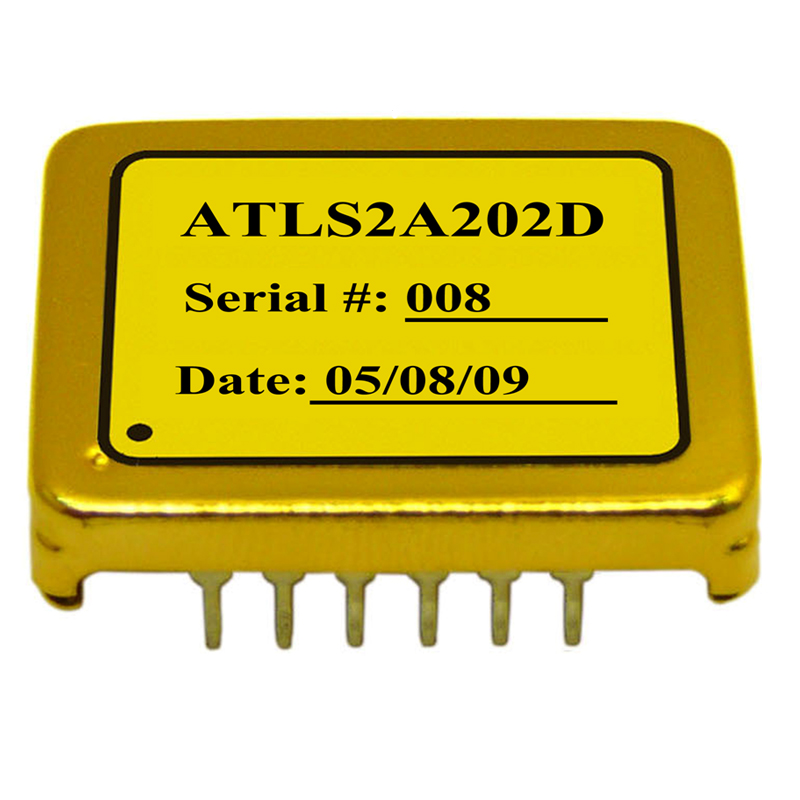

S | ATLS2A202D | ATLSXA201DEV1.0 | |
$79 | 0 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 6.0V | 2A | 0V to 0.9VVPS | <25μAP-P | 70uS | 352uS | 25.8×20×5 | DIP | |
 |

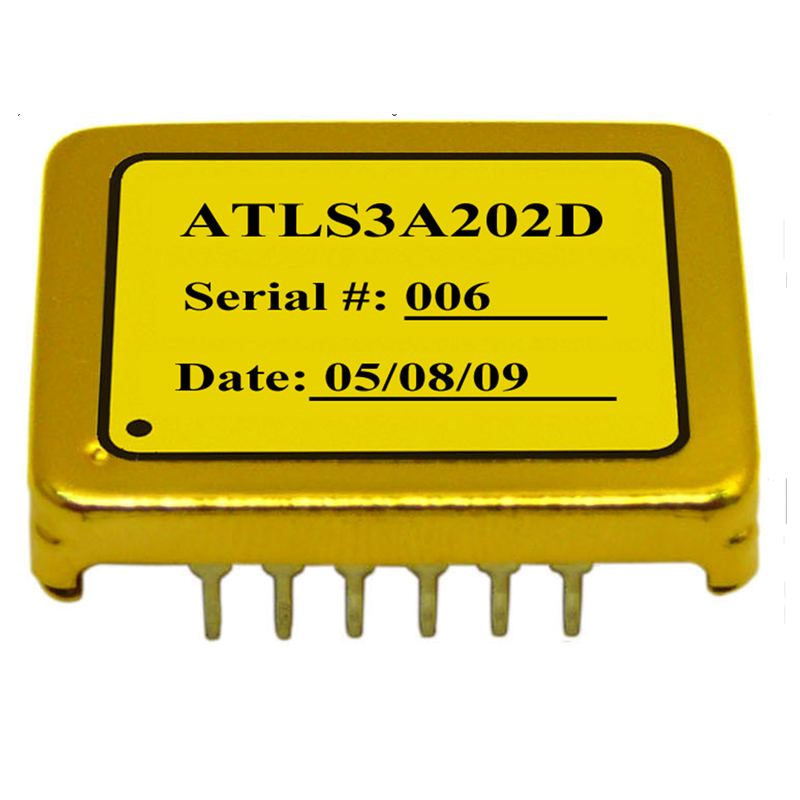

S | ATLS3A202D | ATLSXA201DEV1.0 | |
$79 | 39 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 3A | 0V to 0.9VVPS | <25μAP-P | 70uS | 352uS | 25.8×20×5 | DIP | |
 |

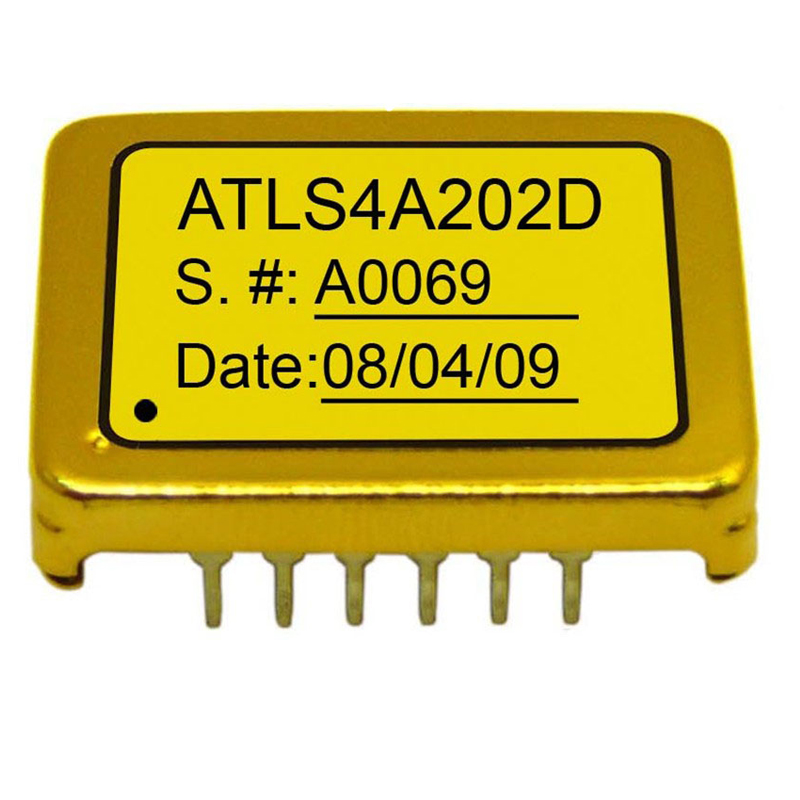

ATLS4A202D | ATLSXA202DEV1.0 | |
$79 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 4A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP | ||
 |

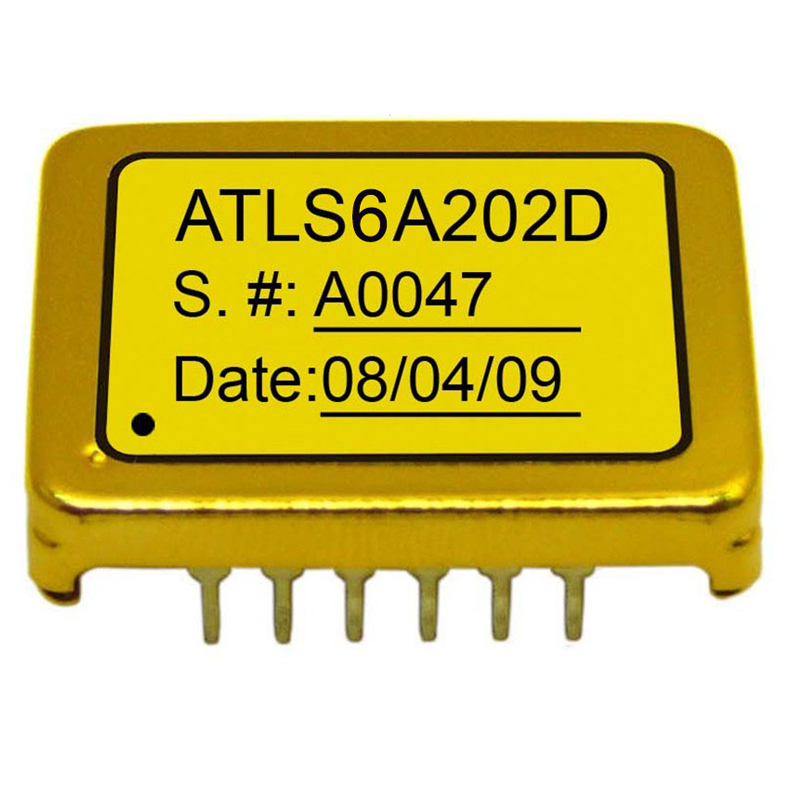

S | ATLS6A202D | ATLSXA201DEV1.0 | |
$79 | 23 | |
No | Constant current | DC | High efficiency Same pinout as CWD-01-V2-D |
3.0V to 5.5V | 6A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 352uS | 25.8×20×5 | DIP |
 |
S | LDA1-CP1 | - | |
$79 | 57 | |
No | Constant current & Constant power |
DC | High efficiency & PD anode grounded |
3.0V to 5.5V | 2A | 0V to 0.9VVPS | <25μAP-P | 11kHz | 30uS | 30uS | 25.4×20×4.6 | DIP |
 |
S | LDA1-CP2 | - | |
$79 | 0 | |
No | Constant current & Constant power |
DC | High efficiency & PD anode not grounded |
3.0V to 5.5V | 2A | 0V to 0.9VVPS | <25μAP-P | 11kHz | 30uS | 30uS | 25.4×20×4.6 | DIP |
 |
S | CWD-01-V2-D | - | |
$83 | 39 | |
No | Constant current & Constant power |
DC | High efficiency | 3.0V to 5.5V | 2A | 0V to 0.9VVPS | <25μAP-P | 5kHz | 70uS | 70uS | 25.8×20×5 | DIP |
 |
S | AAS12A12V2 | - | |
$299 | 1 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 12A | 0V to 12V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS16A9.5V2 | - | |
$299 | 0 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 16A | 0V to 9.5V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS25A6V2 | - | |
$299 | 1 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 25A | 0V to 6V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS40A4V2 | - | |
$299 | 1 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 40A | 0V to 4V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS45A4V2 | - | |
$299 | 0 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 45A | 0V to 4V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS26A10V | - | |
$299 | 0 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 26A | 0V to 10V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS50A6V3 | - | |
$299 | 0 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 50A | 0V to 6V | <354μAP-P | 5kHz | 56μS | 600uS | 199×99×50 | Chassis |
 |
S | AAS100A5V1 | - | |
$499 | 0 | |
No | Constant current | AC | Max. Power: 180W | 100VAC to 240VAC | 100A | 0V to 5V | - | 2kHz | - | - | 278×105×63.5 | Chassis |
| Image | Output Type Switch / Linear Mode |
Part Number | Corresponding Eval. Board |
Datasheet | Unit Price |
Qty. Avail. |
Buy Now | Firmware Inside | Control Mode | Input Power Supply Type | Description | VIN Range | Max. IOUT |
VOUT Range | Noise @0.1~10Hz |
Max. Small Signal Modulation Frequency | Rise Time for Small Signals | Rise Time for Large Signals | Size | PackageType |
|---|
